​High-Precision Cold Roll Forming Solution | Specialized Equipment for Concrete Waterproofing Engineering​

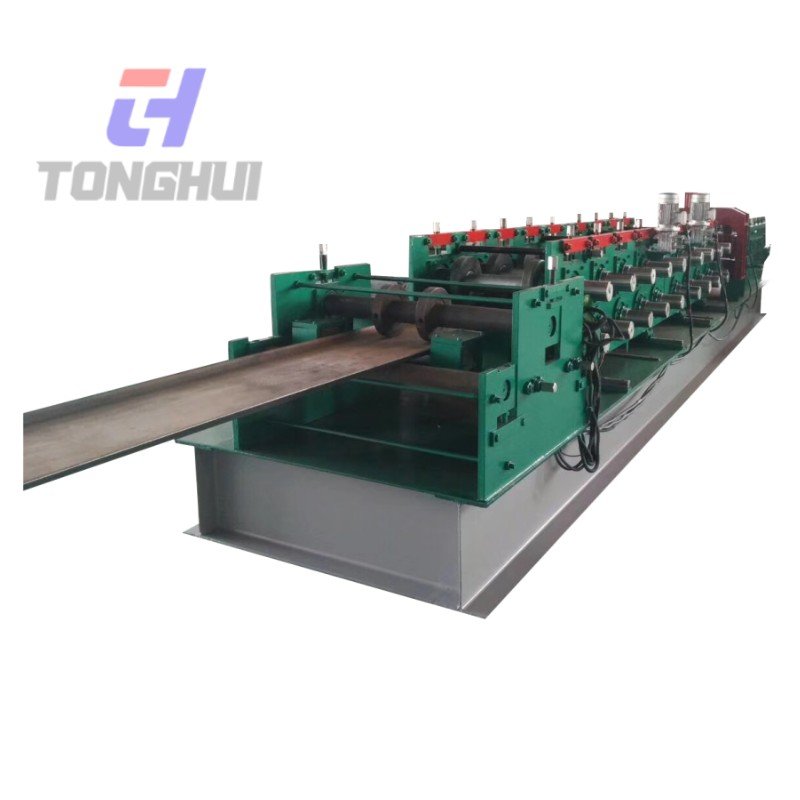

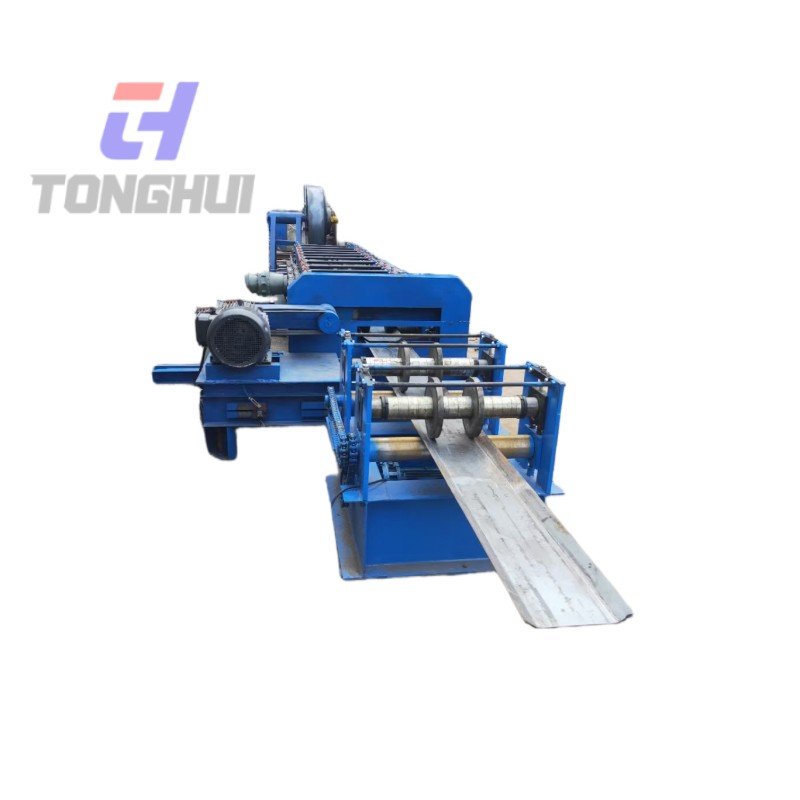

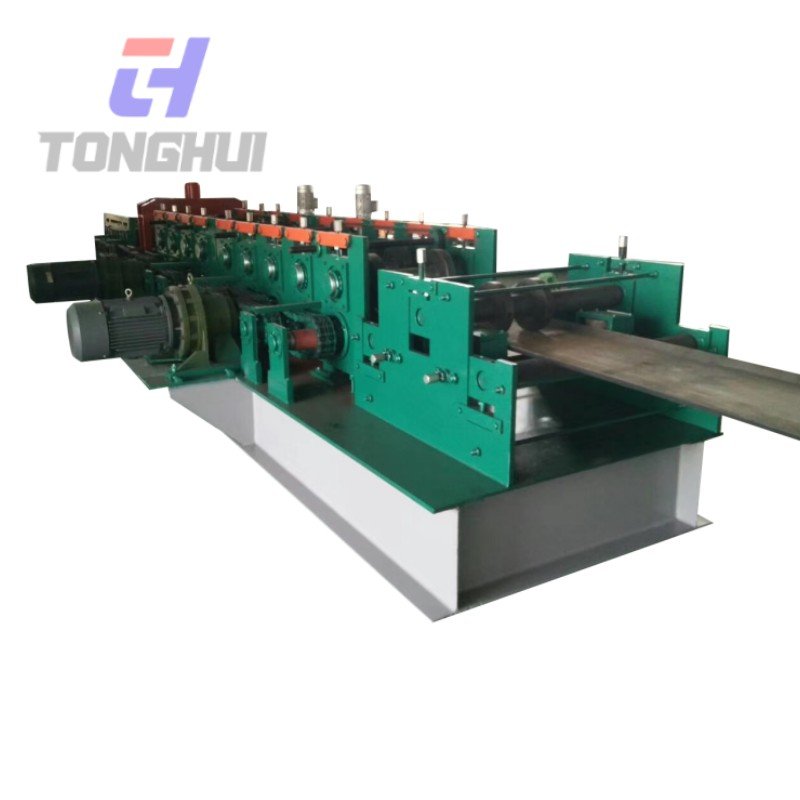

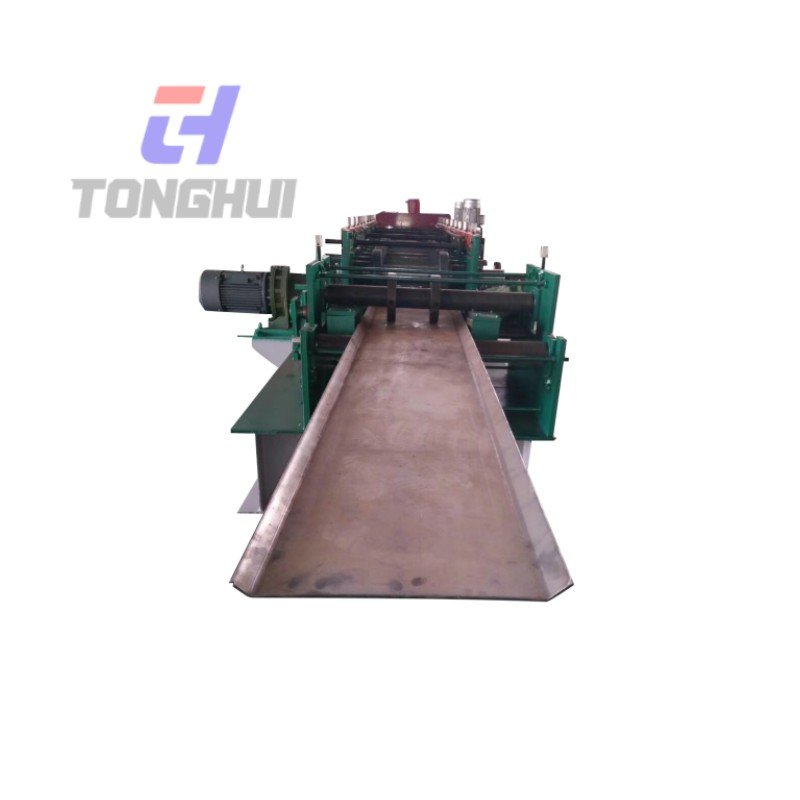

The Waterstop Steel Plate Forming Machine is a cold roll forming equipment specifically designed for producing waterstop steel plates used in construction and hydraulic engineering. Through a multi-pass roll forming process, it continuously processes steel strips into waterstop plate sections with a central bulge and symmetrical wing plates on both sides, effectively enhancing the seepage and leakage prevention performance of concrete structures.

Applicable Product Types

• Construction Waterstop Steel Plates
• Basement Waterstop Steel Plates
• Hydraulic Engineering Waterstop Plates
• Tunnel and Subway Waterproofing Plates
• Concrete Construction Joint Waterstop Profiles

Why Choose Our Waterstop Steel Plate Forming Machine?

1. High Forming Precision, Stable Cross-Section​Multi-pass progressive cold roll forming design ensures consistent rib height, wing plate width, and symmetry of the waterstop plate.

   Forming rollers are made of high-strength alloy steel (e.g., GCr15), quenched and precision-ground, maintaining deformation-free long-term production.

2. High Production Efficiency, Suitable for Batch Project Needs​Continuous roll forming with production speeds up to 15-25 meters/minute.

   Supports automatic fixed-length cutting, meeting rapid on-site construction requirements.

3. Stable Equipment Operation, Low Maintenance Costs​Integral heavy-duty frame with vibration stress relief treatment ensures long-term stable operation.

   Key electrical and hydraulic components can be opted from internationally renowned brands to reduce downtime.

4. Supports Multi-Specification Customization​Customizable waterstop plate width, thickness, and central rib height based on different project requirements.

   Optional online punching, marking, and automatic material collection function modules.

Core Technical Advantages

• PLC + Touchscreen Control System:​ Intuitive parameter setting, real-time monitoring of operating status.
• Variable Frequency Speed Control Drive:​ Smooth operation, energy saving, and consumption reduction.
• High-Precision Fixed-Length Cutting System:​ Hydraulic or servo flying cut ensures smooth, burr-free cuts.
• Forming Stress Control Design:​ Effectively prevents twisting and wavy deformation of the waterstop plate.

Technical Parameters

Typical Application Fields

• Basements and Foundation Engineering: Construction joint waterstops
• Water Conservancy and Hydropower Projects: Dam and channel seepage prevention
• Rail Transit: Subway and tunnel waterproofing structures
• Industrial Buildings: Underground waterproofing systems for large factories

We Provide Complete Waterproof Profile Solutions, Not Just Equipment

From waterstop plate cross-section design and process analysis to equipment manufacturing, installation, debugging, operator training, and long-term technical support, we provide customers with stable and reliable waterstop plate forming solutions, helping you build a competitive advantage in the engineering and equipment markets.

Contact us for detailed quotations and customization plans for the Waterstop Steel Plate Forming Machine!
