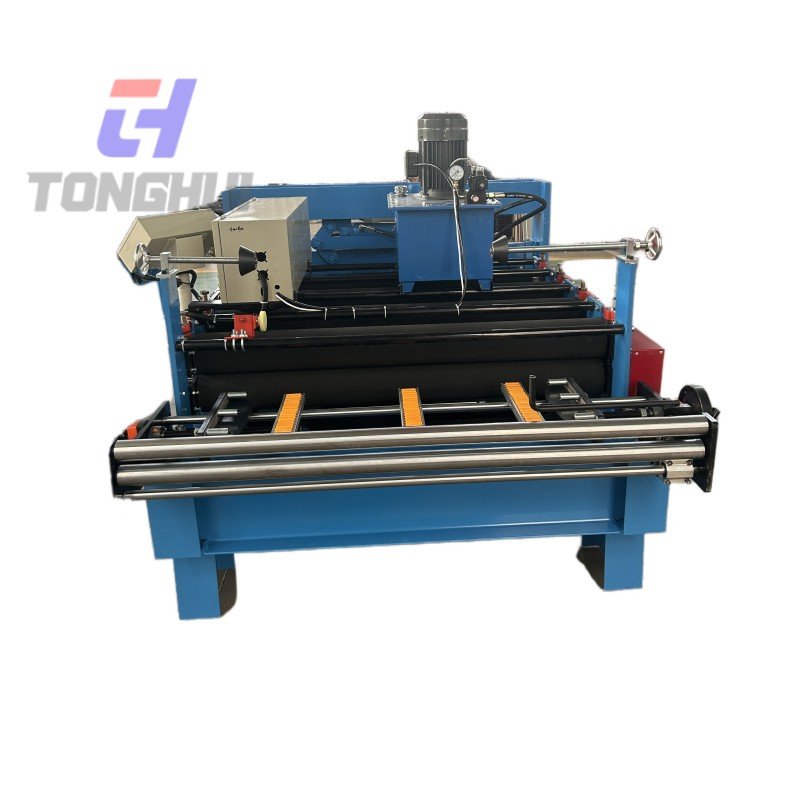

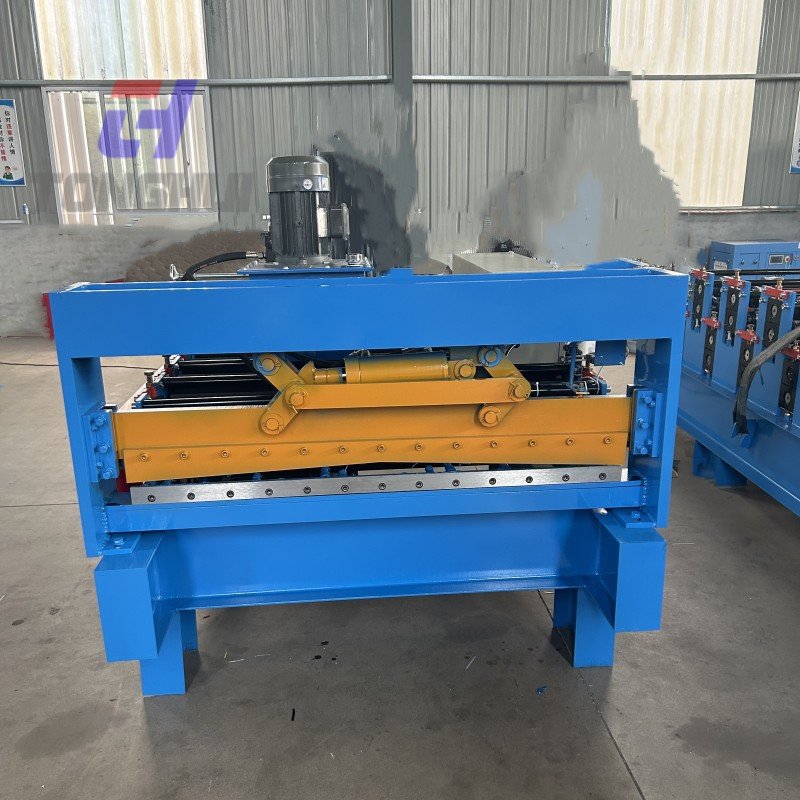

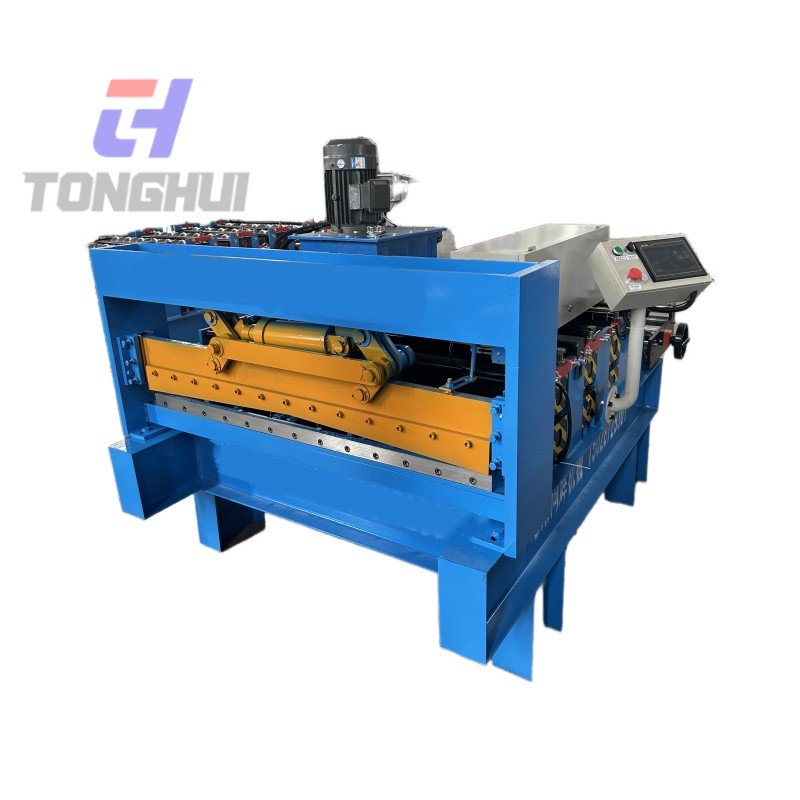

The Steel Plate Leveling Machine is an industrial equipment specifically designed for flattening, straightening, and stress relieving of metal steel plates. It is widely used in cold roll forming production lines and the metal sheet processing industry. Through multiple sets of high-precision leveling rollers, the machine performs continuous reverse bending on steel plates, effectively eliminating issues such as wavy edges, warping, and internal stresses that occur during uncoiling, shearing, transportation, and storage.

Working Principle

The steel plate leveling machine adopts a multi-roller leveling structure with upper and lower leveling rollers arranged in a staggered pattern. As the steel plate passes through the leveling zone, it undergoes multiple micro-plastic bends under adjustable pressure, gradually releasing residual stress and achieving overall flatness.

Basic Workflow:

Uncoiled steel plate → Enters leveling zone → Continuous straightening by upper/lower rollers → Internal stress elimination → Output of high-flatness steel plate

This leveling method features high precision, continuous operation, and wide applicability, making it particularly suitable for long-term stable operation in high-speed cold roll forming production lines.

Equipment Structure Composition

• Overall Frame:​ Heavy-duty steel plate welded structure, aged treated, high rigidity and stability.
• Leveling Roller System:​ Made of high-strength alloy steel, surface hardened and precision ground.
• Roll Gap Adjustment Mechanism:​ Manual or electric adjustment with high precision.
• Transmission System:​ Motor + reducer + gear/chain drive, ensuring even power distribution.
• Inlet/Outlet Guide Devices:​ Ensure stable plate running direction and prevent deviation.Customizable light-duty, medium-duty, or heavy-duty steel plate leveling machines are available based on plate thickness and strength.

Product Advantages

• High Leveling Precision:​ Multi-pass roller design effectively eliminates wavy edges and sickle bends, improving flatness.
• Wide Applicability:​ Suitable for carbon steel, galvanized steel, color-coated steel, stainless steel, and other sheet materials.
• Stable and Durable:​ Key components use high-strength materials, suitable for industrial continuous production and export markets.
• Easy Operation & Maintenance:​ Reasonable structural design, intuitive parameter adjustment, low maintenance costs.
• Easy Production Line Integration:​ Can be linked with cold roll forming machines, shears, and punching equipment for automated production.

Technical Parameters

The following are standard configuration parameters; customization is supported based on customer requirements.

Application Industries

• Cold Roll Forming Machine Production Lines
• Steel Structure Processing Plants
• Color Steel Sheet / Roof Panel Production Lines
• C/Z Purlin Forming Equipment
• Metal Sheet Processing and Slitting Lines

Why Choose Our Steel Plate Leveling Machine?

We specialize in the design and manufacturing of cold roll forming equipment, possessing extensive engineering experience and mature production technology. Each steel plate leveling machine is custom-designed based on the customer’s plate thickness, yield strength, and production cycle requirements, ensuring high precision, high stability, and low failure rates during long-term operation. Our machines are highly trusted by domestic and international customers.
