I. Product Overview

The Angle Seam Roll Forming Machine, also known as the Standing Seam Roll Forming Machine, is a fully automated roll forming equipment used for the continuous production of concealed-fix standing seam metal roof panels. It is widely used in steel structure factories, industrial workshops, warehouse buildings, commercial roofs, residential metal roofs, and large-span steel structure roof projects, meeting the requirements for waterproof performance, wind uplift resistance, and service life of metal roof systems.

Key Features:

• High-Precision Roll Forming:​ Utilizes high-hardness quenched forming rollers to ensure accurate panel dimensions, smooth seams, and aesthetically pleasing roof appearance, complying with domestic and international roofing standards.
• Concealed-Fix Roof Structure Design:​ The roof panels use a concealed clip connection method without exposed screws, effectively improving waterproof performance and reducing leakage and corrosion risks.
• Heavy-Duty Frame Structure:​ The equipment base adopts an integral steel plate welded structure with high strength and good vibration resistance, suitable for long-term continuous production.
• PLC Fully Automatic Control System:​ Equipped with PLC + touchscreen interface supporting Chinese/English language switching, simple operation, and convenient parameter adjustment.
• Custom Panel Design Service:​ Supports OEM/ODM, customizing forming molds according to customer drawings, samples, or national standards.
• Low Noise & Long Service Life:​ Roller surface chrome-plated for strong wear resistance, low operating noise, and low maintenance costs.

Application Fields:

• Industrial building metal roof standing seam panel production lines
• 180°/360° angle seam roof systems
• Old building roof renovation and refurbishment
• Large-span steel structure roof projects

This angle seam standing seam roof panel roll forming machine helps panel manufacturers and engineering contractors achieve high-efficiency production, precise forming, and stable quality output, making it ideal for customers pursuing quality and durability.

II. Technical Parameters Table

III. Frequently Asked Questions

Q1: What materials can the Angle Seam Machine process?

A1:​ It can process metal materials such as galvanized sheets, color-coated sheets, and aluminum sheets, with common thicknesses of 0.4-0.8mm, and supports customization.

Q2: Can you customize the panel according to my drawings?

A2:​ Yes. We support OEM/ODM customization services and can design molds based on customer drawings, samples, or national standards.

Q3: What is the production speed of the equipment?

A3:​ The standard forming speed is 12-20 meters per minute. Higher speeds can be achieved with a servo flying cut system.

Q4: What cutting methods are available?

A4:​ * Hydraulic rear cutting (standard configuration)

• Servo flying cut (high-speed configuration)

Q5: What is the equipment warranty period?

A5:​ The whole machine is warranted for 12 months, with lifelong technical support provided.

Q6: Do you provide installation and training services?

A6:​ We provide video tutorials and remote technical guidance. Overseas after-sales service can be arranged when necessary.

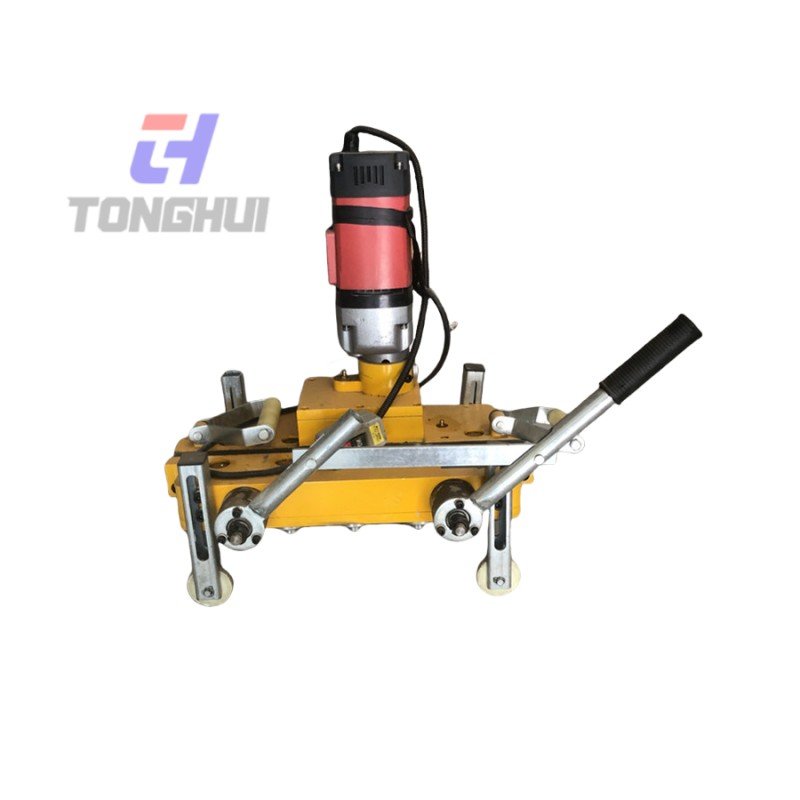

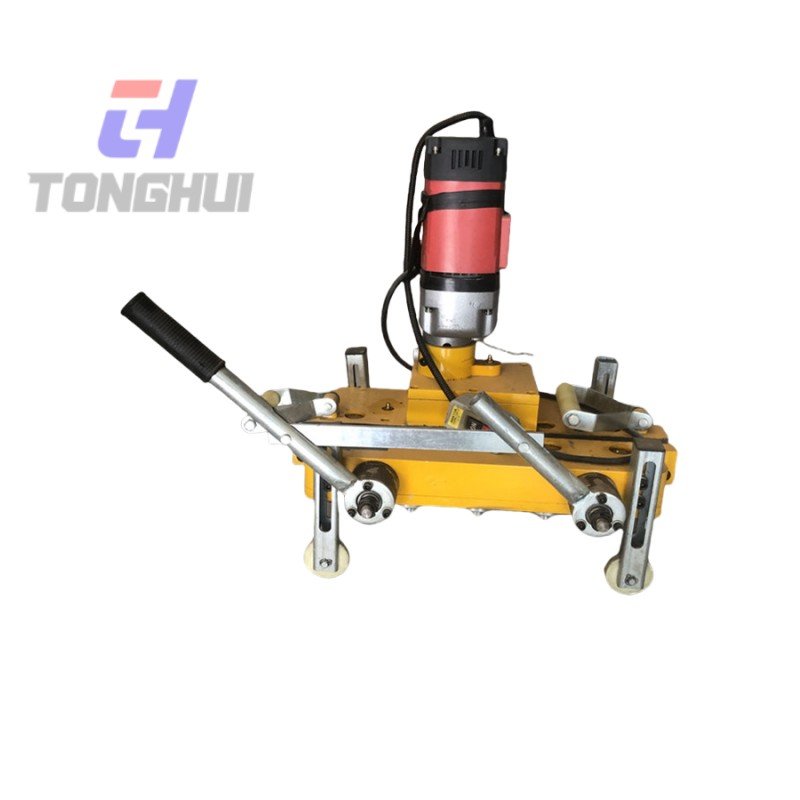

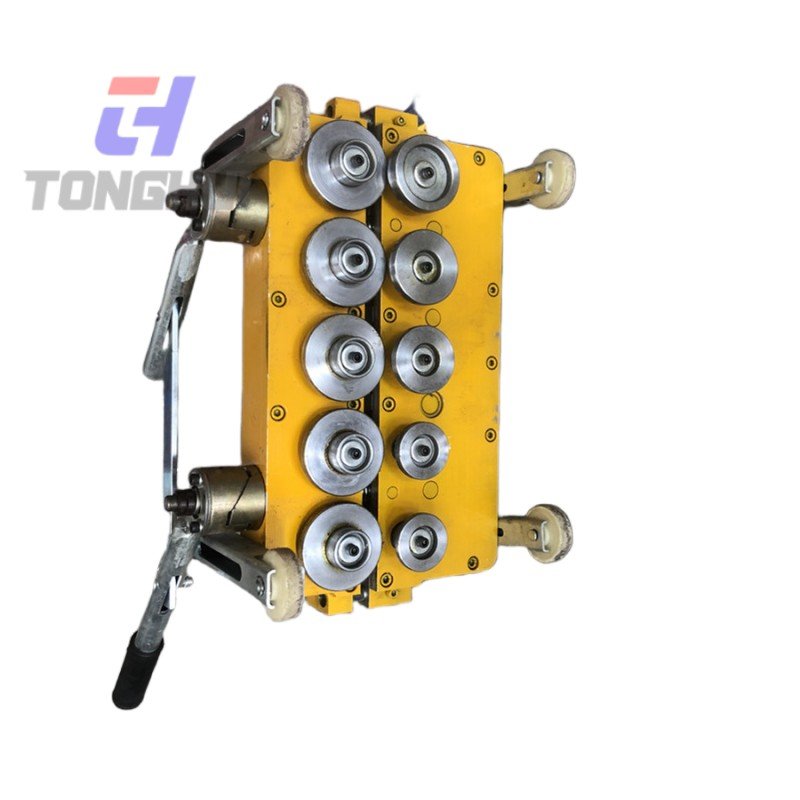

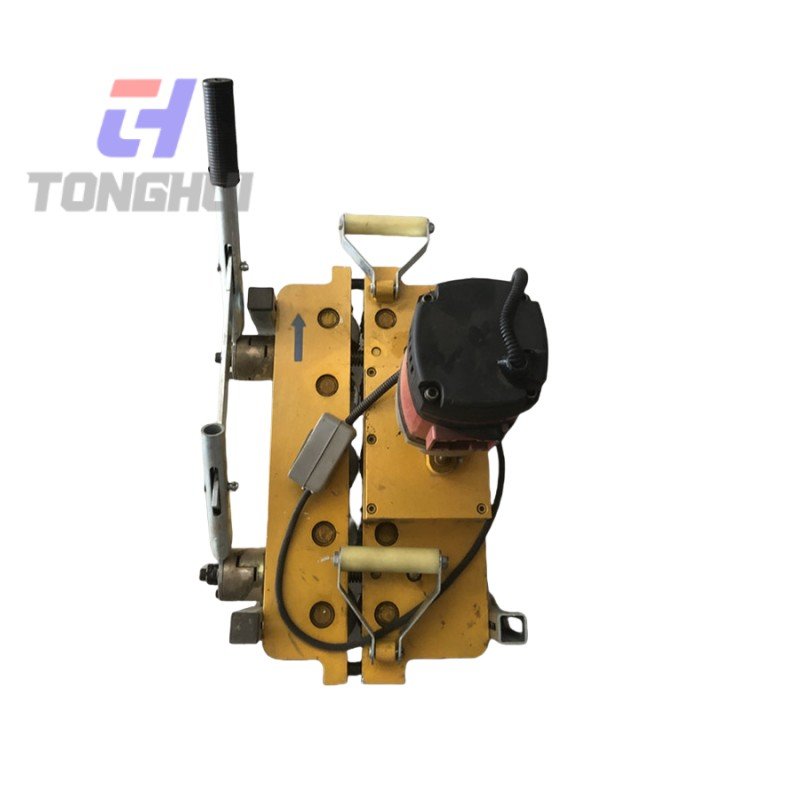

Q7: Can it be used with an automatic seaming machine?

A7:​ Yes, the equipment can be matched with 180°/360° electric or automatic walking-type seaming machines to form a complete angle seam roof system.
