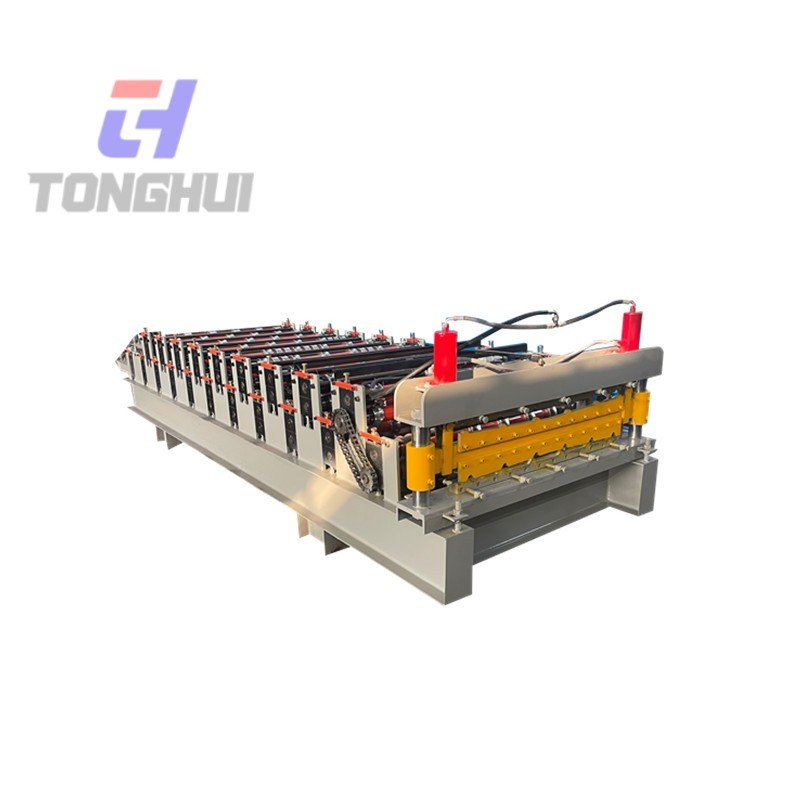

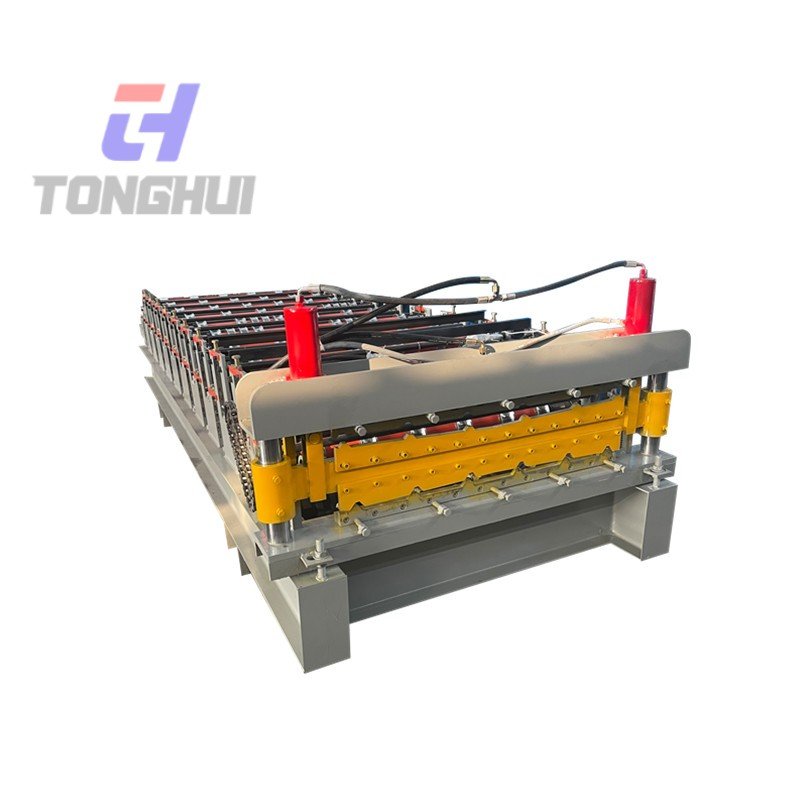

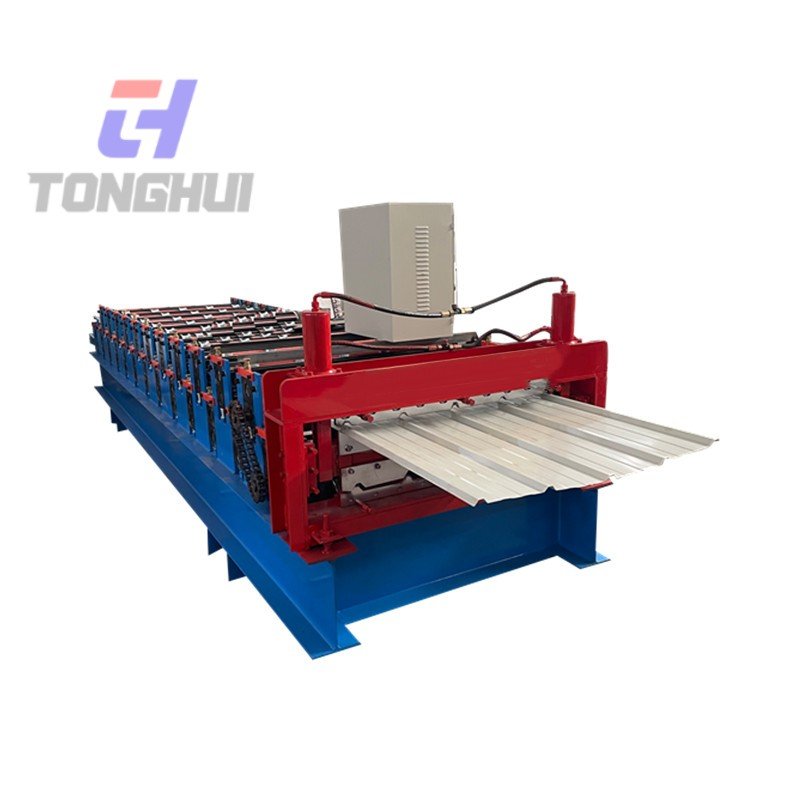

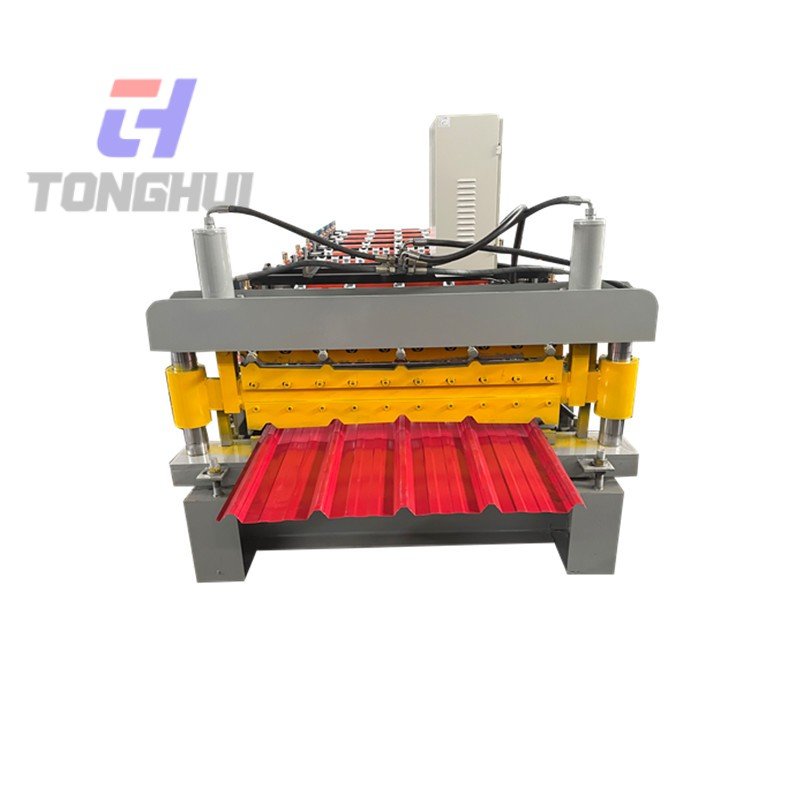

Roof Panel Forming Machine Product Introduction

The Roof Panel Forming Machine is a high-precision cold roll forming equipment specifically designed to continuously shape metal sheets into roof panel sections through a series of rollers. It processes steel plates, galvanized sheets, color-coated sheets, stainless steel plates, or aluminum plates into various building metal roof panel products such as roof panels, purlin plates, and waterproof panels, achieving high-efficiency and high-precision continuous production.

Working Principle

The Roof Panel Forming Machine applies continuous plastic deformation to metal sheets through multiple sets of rollers, gradually forming the desired roof panel cross-section. The sheet enters the machine frame via uncoiling, leveling, and guiding devices, is progressively pressed into shape through each forming roller station, and is output as finished product via a cutting device.

Workflow:

Uncoiling → Leveling → Feeding into Roof Panel Forming Machine → Progressive forming by multiple rollers → Cutting → Output of finished roof panels

Main Equipment Structure

• Frame Structure:​ High-strength steel plate welding, overall aging treatment, ensuring rigidity and stability.
• Forming Roller System:​ Made of high-precision alloy steel, surface hardened and precision ground.
• Transmission System:​ Motor + reducer + gear transmission, ensuring stable power output.
• Feeding and Guiding Device:​ Ensures smooth entry of the sheet into the machine frame.
• Cutting Device:​ Hydraulic or mechanical cutting, ensuring finished product length and cross-sectional accuracy.
• Control System:​ PLC control, enabling semi-automatic or fully automatic operation.

The equipment can be customized according to different sheet thicknesses, widths, and roof panel sections to meet various building production needs.

Product Advantages

• High-Precision Forming:​ Multi-pass roller design ensures stable roof panel cross-section and high flatness.
• Wide Range of Applicable Materials:​ Suitable for various metal materials including carbon steel, galvanized sheet, color-coated sheet, stainless steel plate, and aluminum plate.
• Efficient Continuous Production:​ Strong continuous production capability, suitable for small, medium, and large-scale roof panel production lines.
• Easy Operation and Maintenance:​ PLC control system offers intuitive operation, flexible adjustment, and low maintenance costs.
• Easy Production Line Integration:​ Can be integrated with uncoilers, levelers, cutting machines, and feeding devices to form a complete roof panel production line.

Technical Parameters

​


​
Application Fields

• Industrial Building Roof Panel Production
• Warehouse and Logistics Facility Roof Panel Production
• Light Steel Structure Building Roof Panel Production
• Color Steel Tile and Waterproof Roof Panel Production
• Building Metal Roof Panel Processing Workshops

Why Choose Our Roof Panel Forming Machine

We specialize in the research, development, and manufacturing of cold roll forming equipment, designing high-precision forming solutions tailored to the characteristics of roof panel production. Each Roof Panel Forming Machine can be customized based on sheet thickness, material type, and roof panel section, ensuring high forming precision, high stability, and low maintenance costs during long-term operation, serving customers worldwide.
