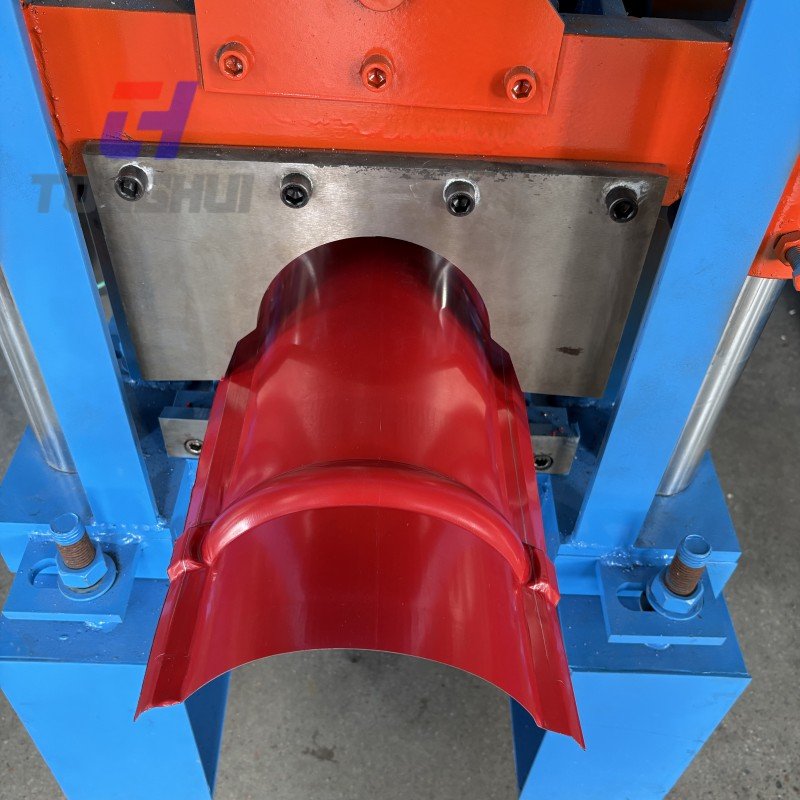

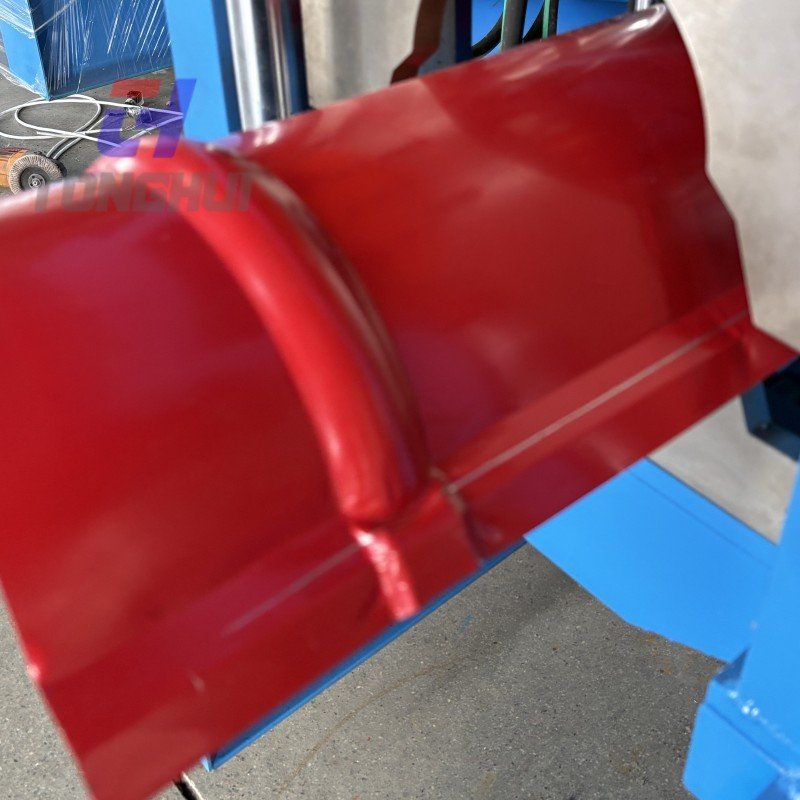

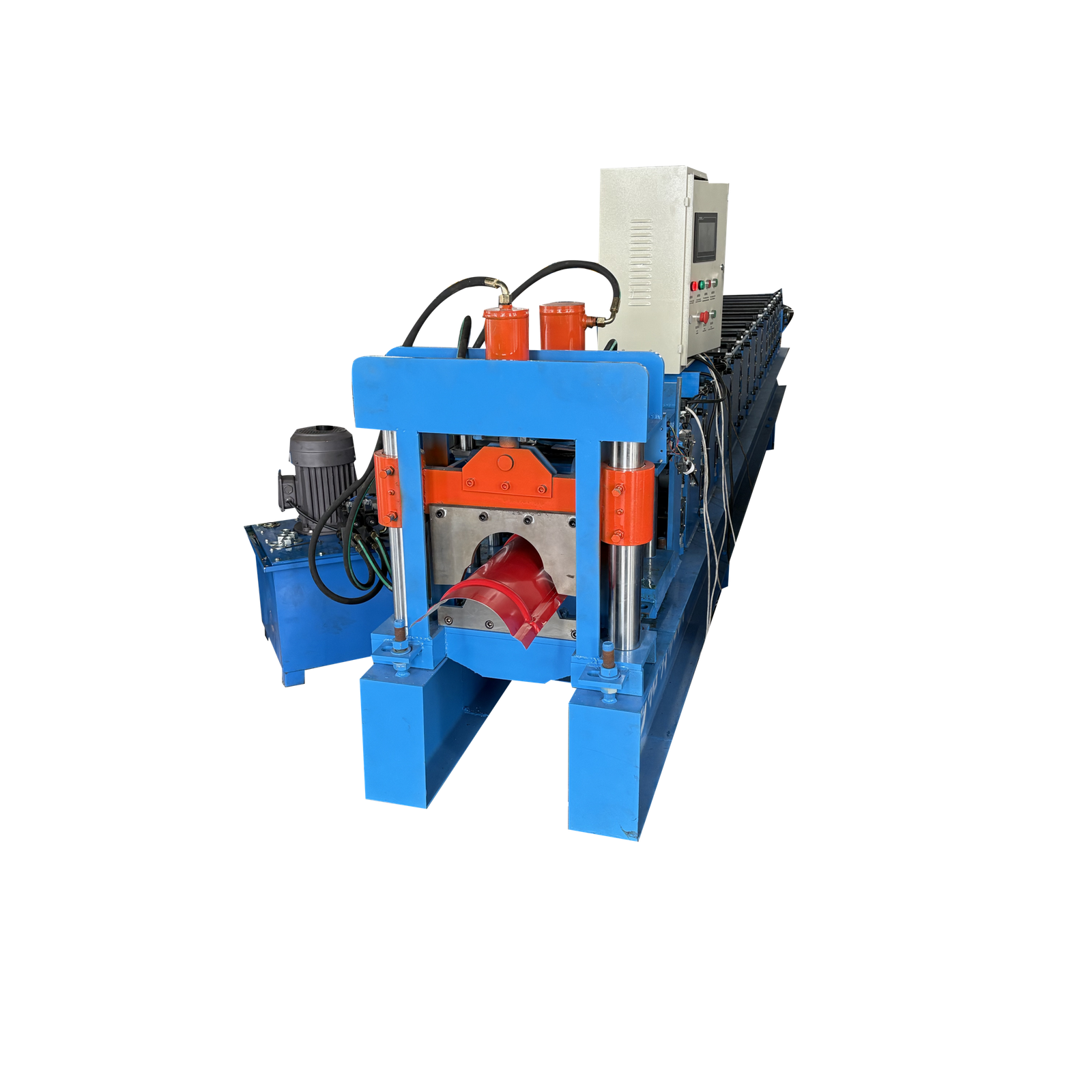

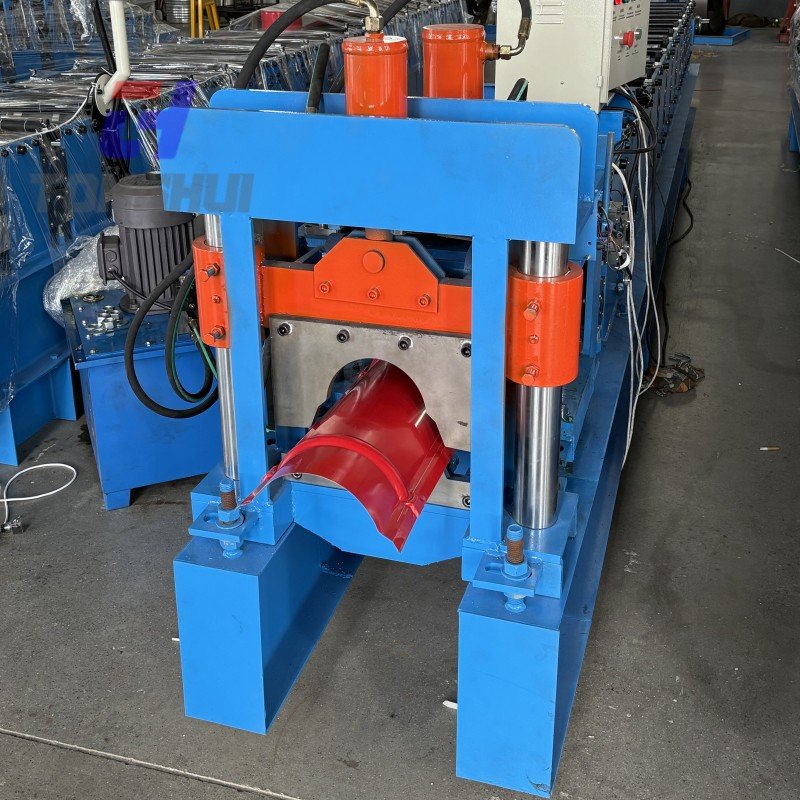

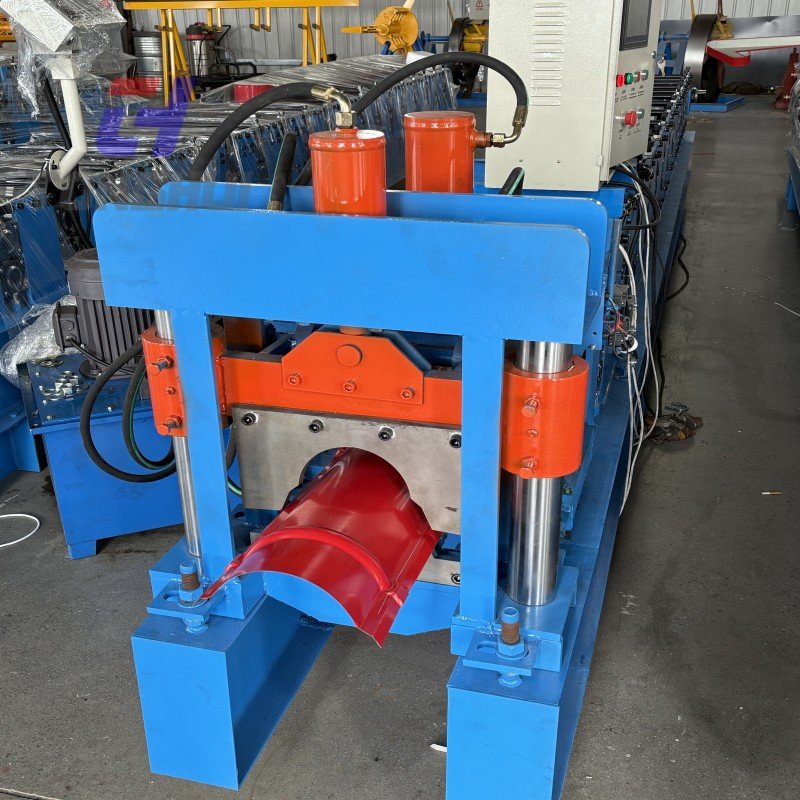

The Ridge Tile Forming Machine is a highly efficient automated equipment specifically designed for producing metal roof ridge tiles. Ridge tiles are primarily used at the roof ridge of buildings, serving multiple functions such as waterproofing, sealing, and decoration, making them an essential component of metal roofing systems. Utilizing advanced cold roll forming technology, the Ridge Tile Forming Machine can accurately produce metal ridge tiles of various specifications and shapes, offering high precision, high production efficiency, and stability.

The equipment is equipped with a PLC intelligent control system, enabling fully automated production with simple operation and stable performance, making it suitable for large-scale production needs. Whether for residential buildings, commercial structures, or industrial plants, the Ridge Tile Forming Machine provides efficient and reliable production solutions, meeting customers’ demands for high-quality and customized ridge tiles.

Main Features:​

• High-Precision Forming:​ Employs precision cold roll forming technology to ensure accurate dimensions and shapes of each ridge tile, complying with design requirements.
• High Production Efficiency:​ The equipment operates at high speeds, enabling rapid and efficient production of large quantities of ridge tiles to meet the demands of large-scale construction projects.
• Automated Control:​ Equipped with a PLC intelligent control system, it achieves automated production, reduces manual intervention, and improves production efficiency.
• Energy Saving and Eco-Friendly:​ Utilizes high-efficiency motors and drive systems to reduce energy consumption, aligning with green environmental standards and helping enterprises lower production costs.
• Flexible Customization:​ Supports customization of ridge tiles with different specifications, thicknesses, and shapes, providing personalized production solutions based on customer requirements.

Technical Parameters:​

• Production Speed: 6–12 m/min
• Sheet Width: Customizable (common range: 300 mm–600 mm)
• Sheet Thickness: 0.4–1.2 mm
• Power: 15 kW
• Power Supply: 380 V/50 Hz
• Coil Width: ≤1250 mm
• Overall Dimensions: Approx. 6000 mm × 2000 mm × 1500 mm
• Weight: Approx. 5000 kg

Application Fields:​

• Roof ridge protection for residential, commercial, and industrial buildings
• Production of metal roof ridge tiles
• Roofing systems with functions such as waterproofing, thermal insulation, and sound insulation
• Custom production of ridge tiles for various construction projects​

Frequently Asked Questions (FAQ)​

Q1: What types of ridge tiles can the Ridge Tile Forming Machine produce?​

A1: The Ridge Tile Forming Machine is specifically designed to produce metal roof ridge tiles of various specifications and shapes. It is widely used in roof ridge protection systems for residential, commercial, and industrial buildings and supports customization of different shapes and sizes.

Q2: What is the production speed of the equipment?​

A2: The production speed of the Ridge Tile Forming Machine can reach up to 12 meters per minute, making it suitable for efficient large-scale production and capable of meeting high-volume demands.

Q3: Is the operation of the equipment complicated?​

A3: The equipment uses a PLC intelligent control system, making operation simple. Its high degree of automation reduces manual intervention, thereby improving production efficiency and product consistency.

Q4: How is the quality of the ridge tiles produced?​

A4: Utilizing high-precision cold roll forming technology, the machine produces ridge tiles with accurate shapes and dimensions. The tiles exhibit excellent waterproofing, corrosion resistance, and durability, adapting to various harsh weather conditions.

Q5: Does the equipment support custom production?​

A5: Yes, the Ridge Tile Forming Machine supports customization of ridge tiles according to customer requirements, including different specifications, thicknesses, and shapes, to meet the needs of diverse construction projects

​


​
