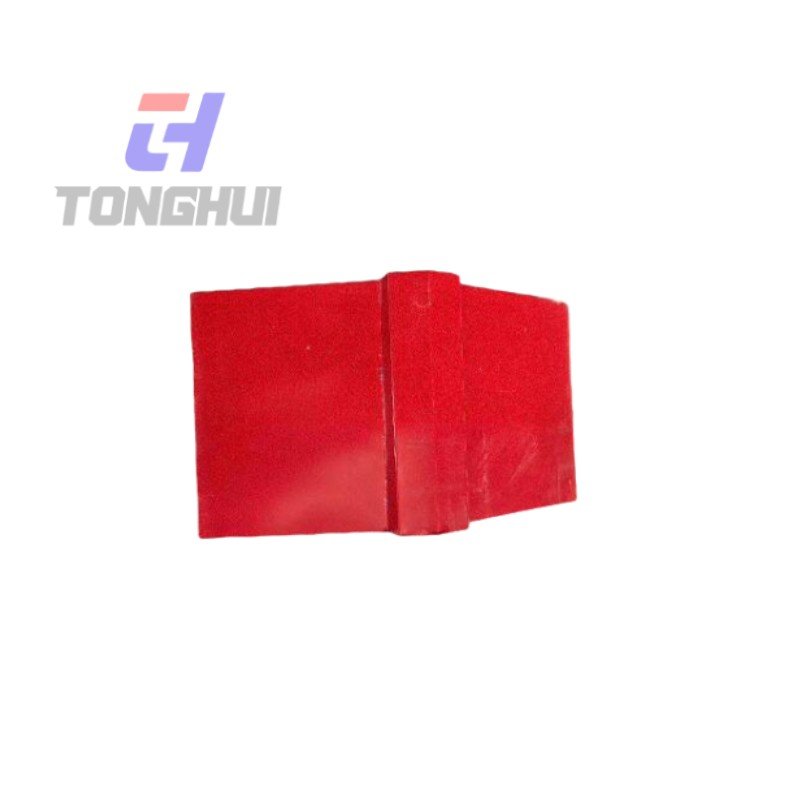

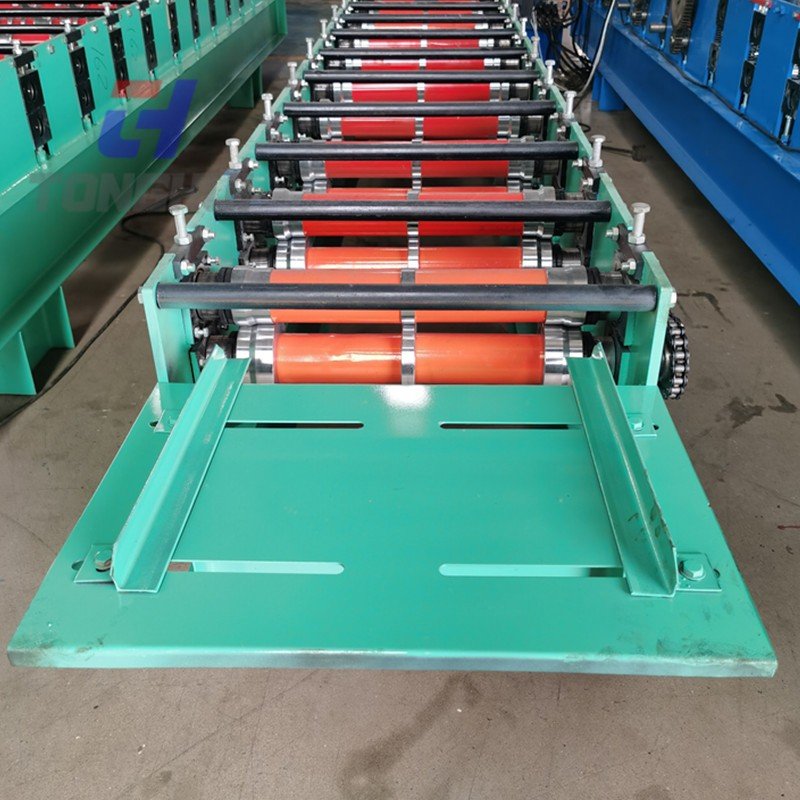

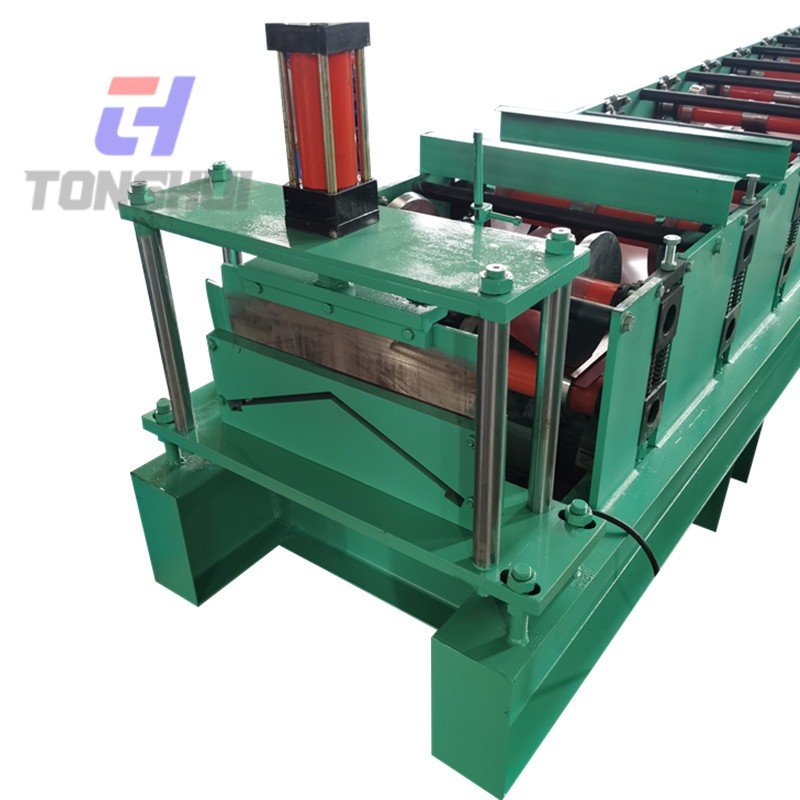

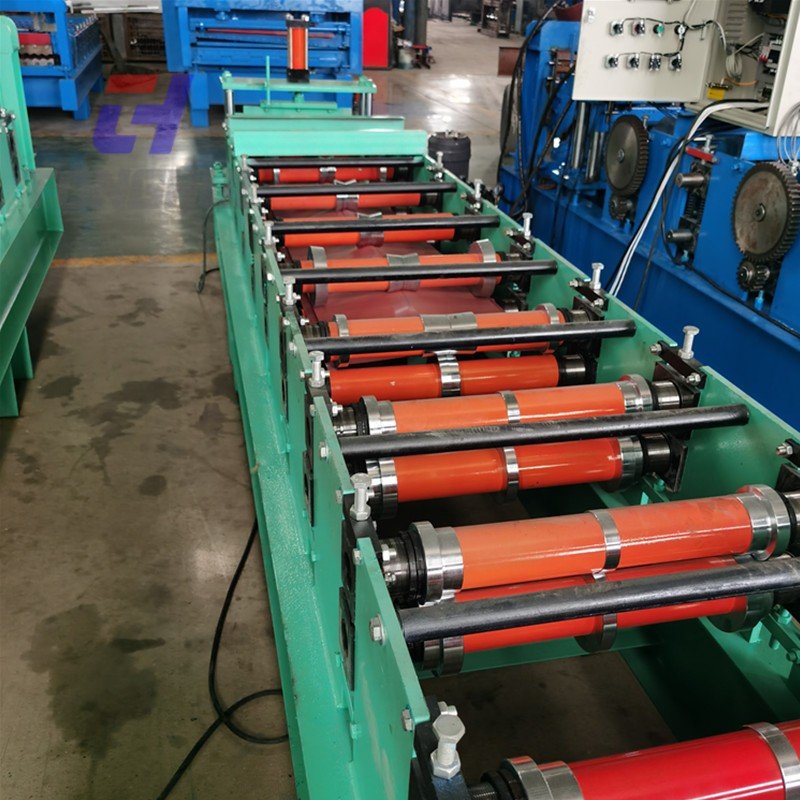

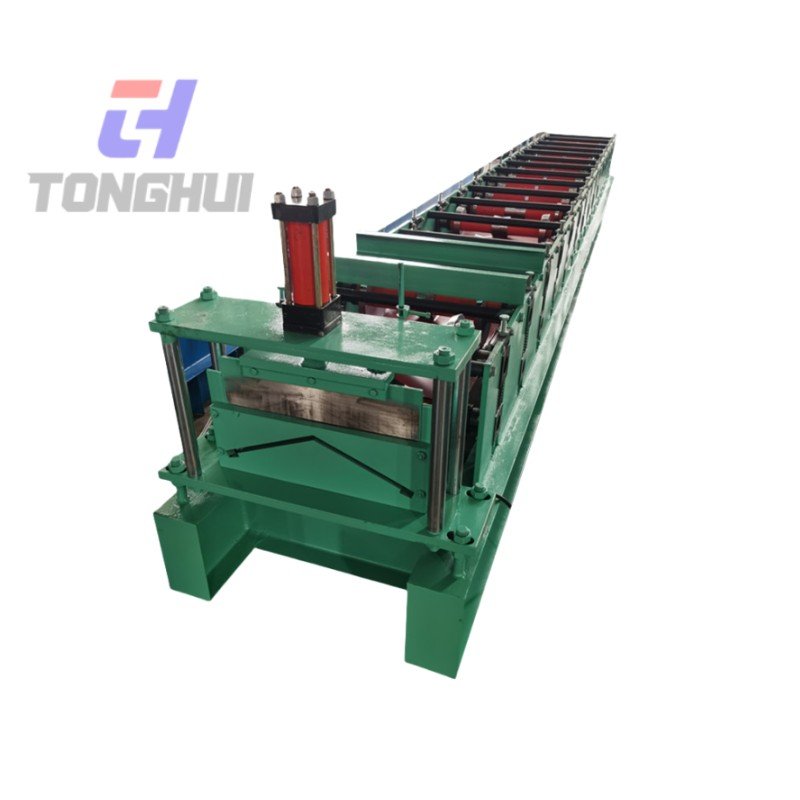

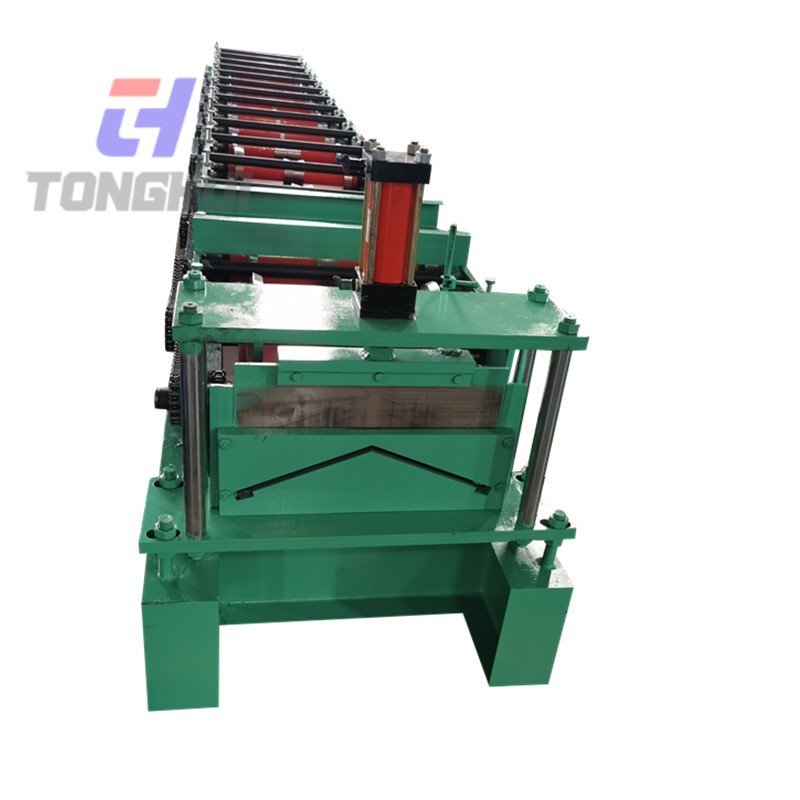

The Ridge Cap Tile Forming Machine is a highly efficient automated equipment specifically designed for producing metal roof ridge cap tiles. Ridge cap tiles are primarily used at the top of roofing structures, serving as protective devices for roof ridges. They effectively prevent rainwater leakage, enhancing the roof’s sealing performance and durability. This equipment employs cold roll forming technology to precisely produce ridge cap tiles of various specifications and shapes, featuring high precision, high production efficiency, and stability.

Main Features:

• High-Precision Forming:​ Utilizes advanced cold roll forming technology to ensure the dimensions and shape of each ridge cap tile are accurate and meet design requirements.
• High Production Efficiency:​ The equipment boasts high production speeds, enabling rapid and efficient completion of large-volume ridge cap tile orders, suitable for large-scale project needs.
• Automated Control:​ Equipped with a PLC intelligent control system, it achieves fully automated production, reduces manual intervention, and improves production efficiency.
• Energy Saving and Environmental Protection:​ Uses high-efficiency motors and drive systems to reduce energy consumption, aligning with green environmental standards and helping enterprises save on production costs.
• Flexible Customization:​ The equipment supports the customization of ridge cap tiles with different specifications, thicknesses, and shapes, providing personalized production solutions based on customer requirements.

Technical Parameters:

• Production Speed: 6-10 m/min
• Sheet Width: Customizable (common range: 300mm – 600mm)
• Sheet Thickness: 0.4 – 1.2 mm
• Power: 15 KW
• Power Supply: 380V / 50Hz
• Coil Width: ≤ 1250 mm
• Overall Dimensions (approx.): 6000 mm x 2000 mm x 1500 mm
• Weight (approx.): 5000 kg

Application Fields:

• Ridge protection for residential, commercial, and industrial buildings.
• Production of metal roof ridge cap tiles.
• Roofing systems with functions like waterproofing, thermal insulation, and sound insulation.
• Custom production of ridge cap tiles for various construction projects.

Frequently Asked Questions (FAQ)

Q1: What types of ridge cap tiles can the Ridge Cap Tile Forming Machine produce?

A1: The Ridge Cap Tile Formning Machine is specifically designed to produce metal roof ridge cap tiles of various specifications and shapes. It is widely used in ridge protection systems for residential, commercial, and industrial buildings, and supports customization of different shapes and sizes.

Q2: What is the production speed of the equipment?

A2: The production speed of the Ridge Cap Tile Forming Machine can reach up to 10 meters per minute, suitable for efficient large-scale production and capable of meeting high-volume demands.

Q3: Is the operation of this equipment complicated?

A3: The equipment uses a PLC intelligent control system, making operation simple. Its high degree of automation reduces manual intervention, thereby improving production efficiency and product consistency.

Q4: How is the quality of the ridge cap tiles produced?

A4: Utilizing precision cold roll forming technology, the machine produces ridge cap tiles with accurate shapes and dimensions. The tiles exhibit excellent waterproofing, corrosion resistance, and durability, adapting to various harsh weather conditions.

Q5: Does the equipment support custom production?

A5: Yes, the Ridge Cap Tile Forming Machine supports customization of ridge cap tiles according to customer requirements, including different specifications, thicknesses, and shapes, to meet the needs of diverse construction projects.

​


​
