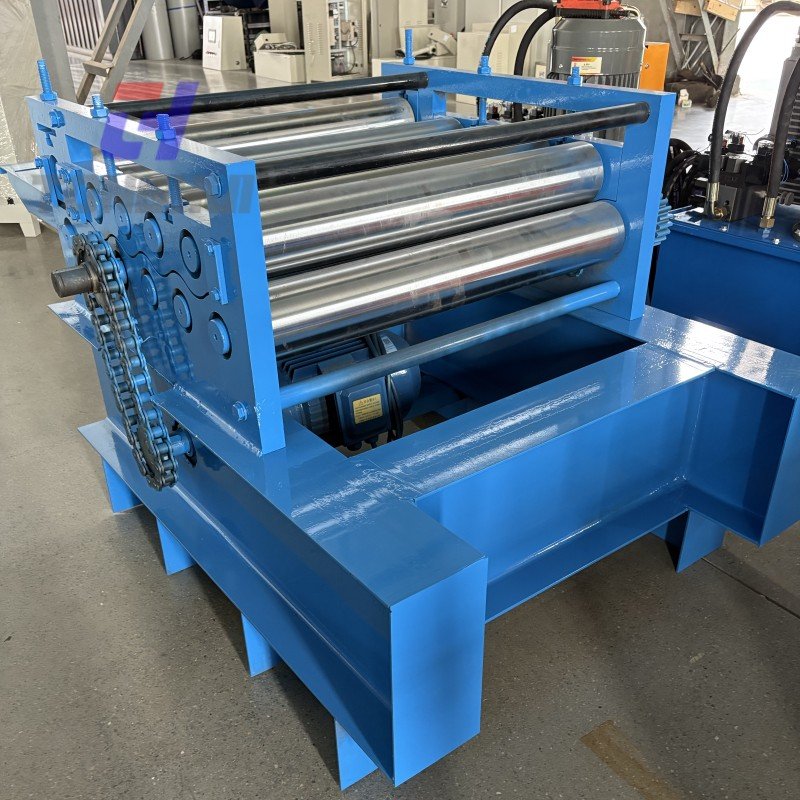

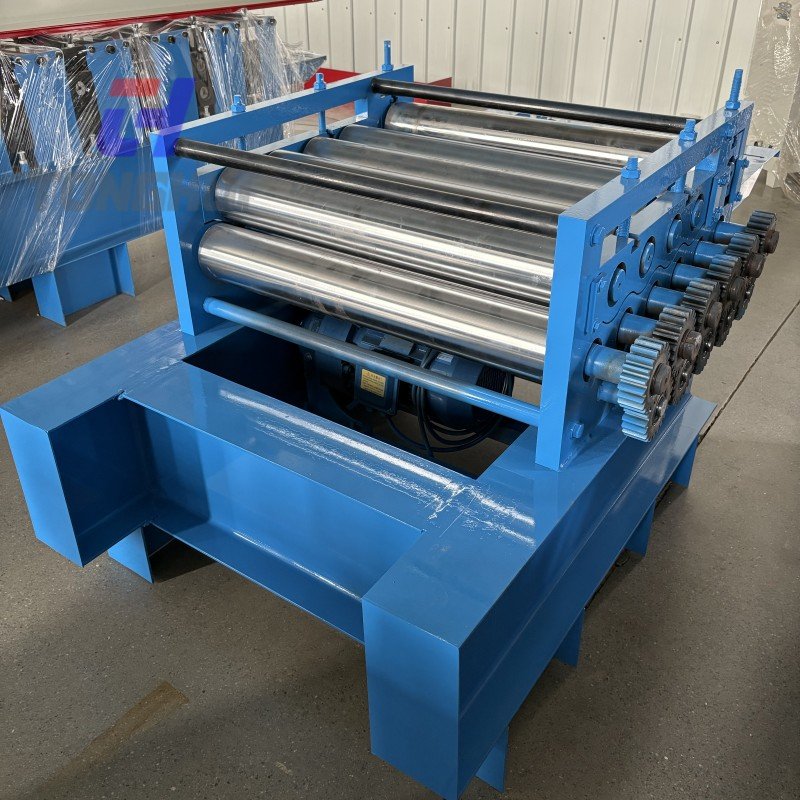

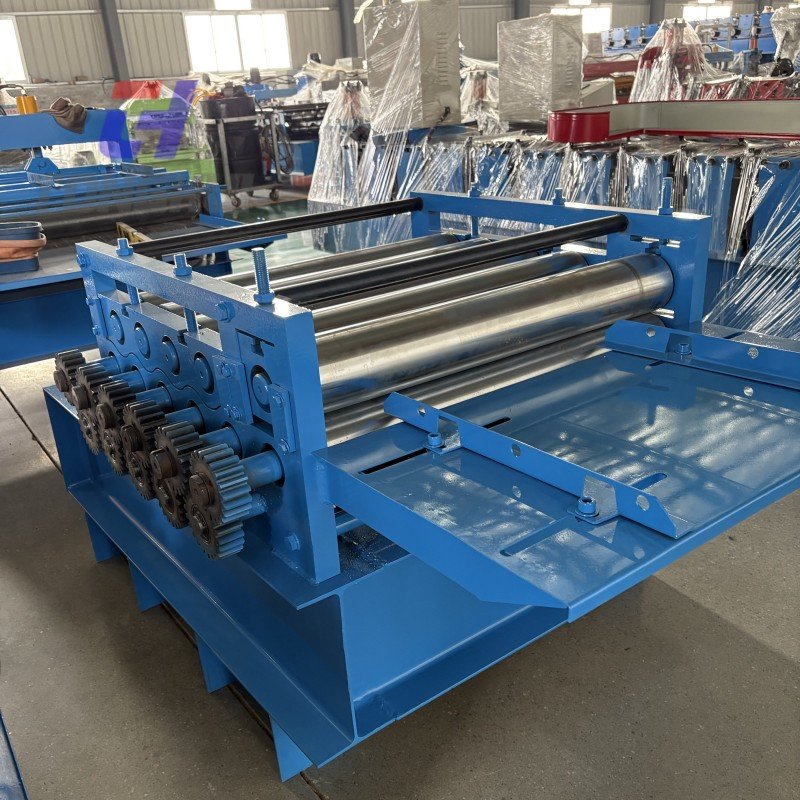

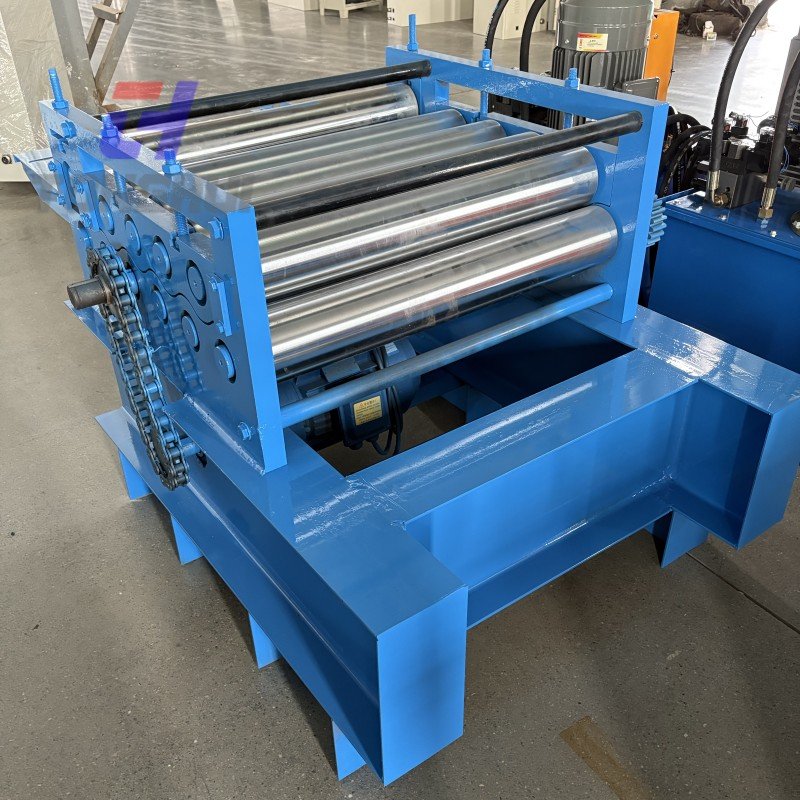

The Metal Plate Leveling Machine is a professional industrial equipment specifically designed for high-precision straightening and stress relief of various metal plates. Through multiple sets of staggered leveling rollers, the metal plate undergoes repeated micro-bending during continuous passage, effectively eliminating issues such as wavy edges, warping, distortion, and internal stresses.

Working Principle

The machine features an upper and lower leveling roller staggered arrangement design. As the plate passes through the leveling zone, internal stress is released through multiple forward and reverse micro-plastic bends, achieving overall flatness.

Workflow:

Uncoiled plate → Enters leveling zone → Continuous leveling by upper/lower rollers → Stress relief → Output of high-flatness plate

This method offers high leveling precision, strong continuity, and wide applicability, making it particularly suitable for high-speed continuous cold roll forming production lines.

Equipment Structure

• Frame Structure:​ High-strength welded steel plate, fully aged, with high rigidity and stability
• Leveling Roller System:​ Made of high-quality alloy steel, surface hardened and precision ground
• Roll Gap Adjustment:​ Manual or electric adjustment with high precision
• Transmission System:​ Motor + reducer ensuring stable power output
• Guiding Device:​ Ensures smooth plate operation and prevents deviationLight, medium, or heavy-duty metal plate leveling machines can be customized according to customer plate thickness and production line speed.

Product Advantages

• High Leveling Precision:​ Multi-pass roller design effectively eliminates wavy edges, warping, and slight distortion
• Wide Material Applicability:​ Suitable for carbon steel, galvanized plate, color-coated plate, stainless steel, aluminum plate, and other metal materials
• Stable and Durable:​ Key components use high-strength materials, suitable for industrial continuous operation
• Easy Operation and Maintenance:​ Reasonable structure, intuitive adjustment, low maintenance costs
• Easy Production Line Integration:​ Can be connected with cold roll forming machines, shears, and punching equipment for automated production

Technical Parameters

Application Industries

• Cold Roll Forming Machine Production Lines
• Color Steel Sheet, Roof Panel, Wall Panel Equipment
• C-Section Steel, Z-Section Steel Forming Production Lines
• Light Gauge Steel Stud Production Lines
• Metal Plate Processing and Slitting Lines

Why Choose Our Metal Plate Leveling Machine?

We specialize in the R&D and manufacturing of cold roll forming and plate processing equipment, possessing mature engineering design and rich export experience. Each metal plate leveling machine is custom-designed according to plate thickness, yield strength, and production cycle requirements, ensuring high precision, high stability, and low maintenance costs during long-term operation. Our equipment is highly trusted by domestic and international customers.
