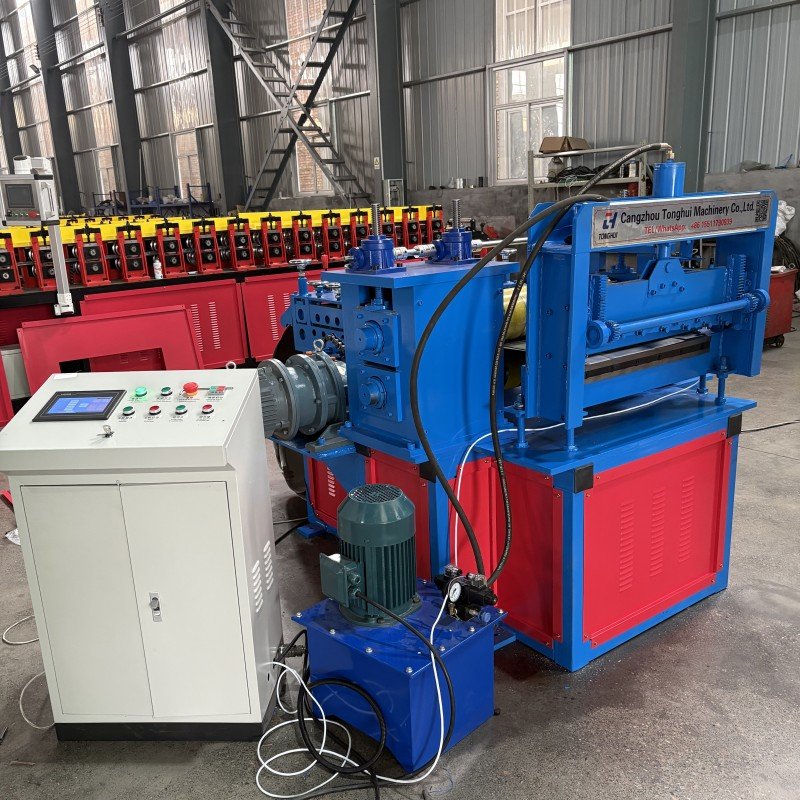

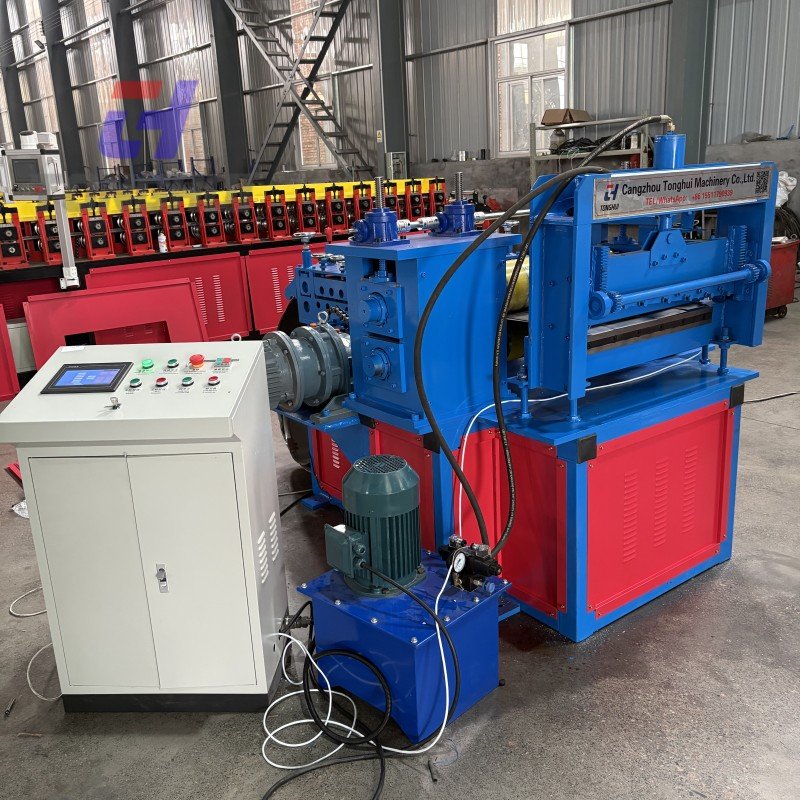

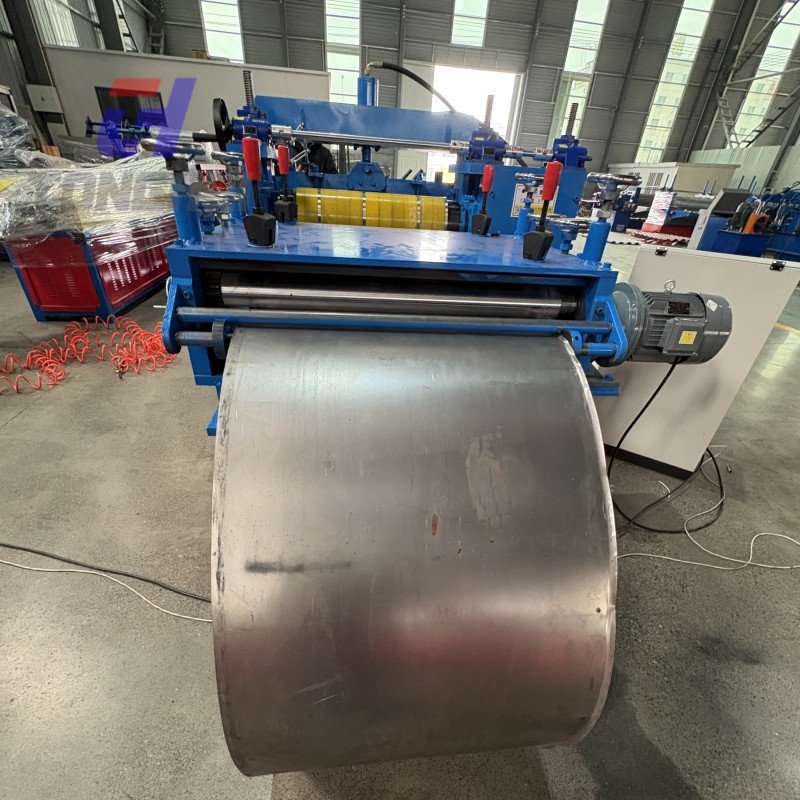

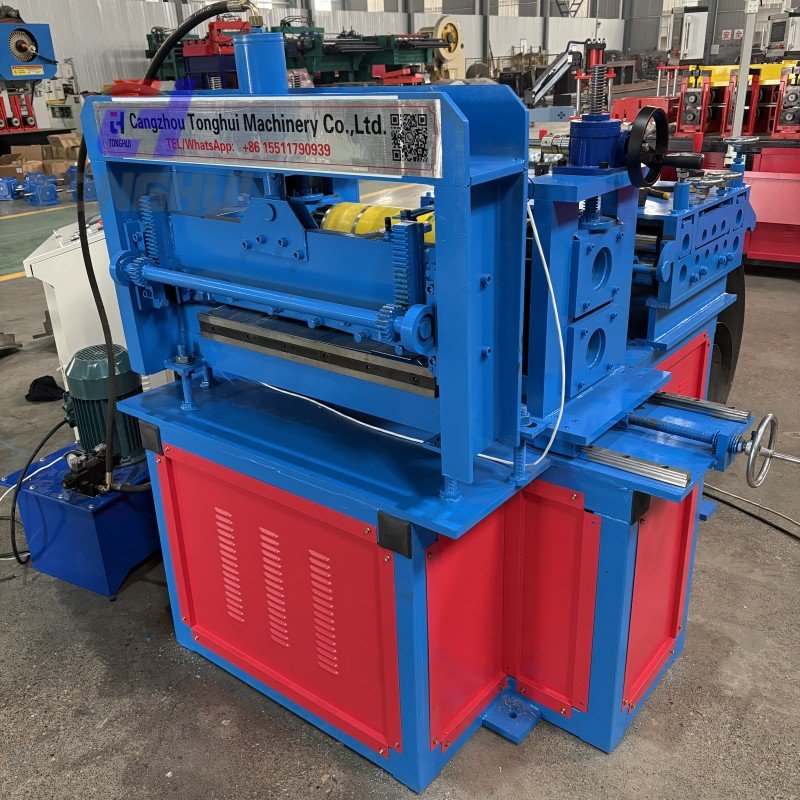

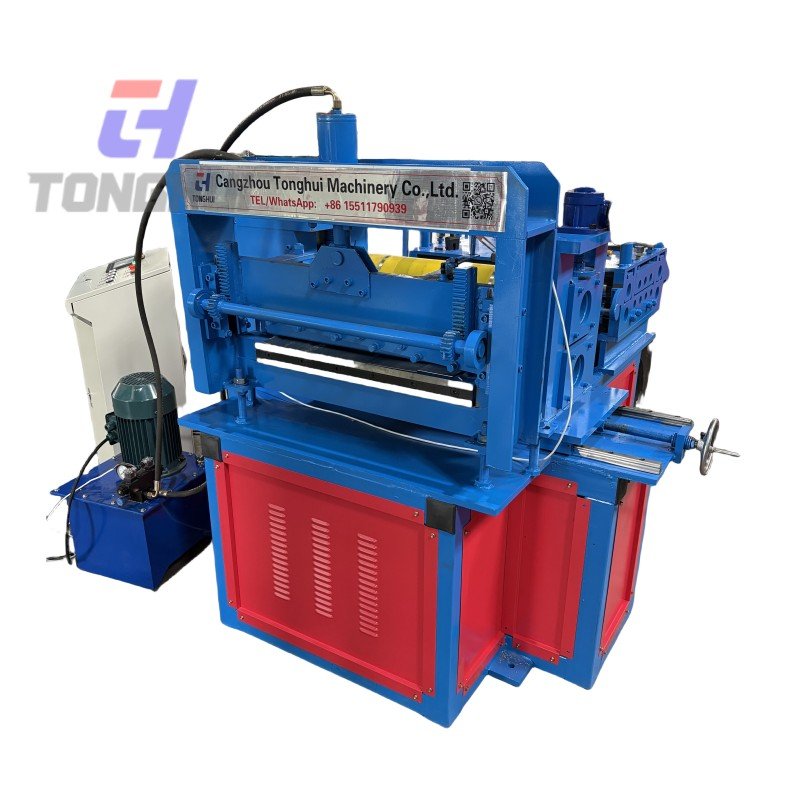

The Metal Leveling Machine is a professional equipment used for high-precision flattening, straightening, and internal stress relief of various metal plates and strips. It is widely applied in cold roll forming production lines and the metal sheet processing industry. Through the continuous action of multi-pass leveling rollers, the equipment effectively eliminates deformation issues such as wavy edges, warping, and distortion that occur during uncoiling, shearing, transportation, and storage of metal materials.

Working Principle

The metal leveling machine adopts a multi-roller leveling structure design with upper and lower leveling rollers arranged in a staggered pattern. As the metal sheet passes through the leveling area, it undergoes multiple micro-plastic reverse bends under adjustable pressure, gradually releasing the material’s internal residual stress and achieving overall flatness.

Basic Workflow:

Metal sheet uncoiling → Enters leveling area → Continuous straightening by upper/lower leveling rollers → Internal stress elimination → Output of high-flatness metal sheet

This working method features stable leveling effects, strong continuity, and wide material adaptability, making it particularly suitable for high-speed, continuously operating cold roll forming production lines.

Equipment Structure

• High-Strength Frame Structure:​ Integral steel plate welding, aged treated, with high rigidity and stability
• Leveling Roller System:​ Manufactured from high-quality alloy steel, surface hardened and precision ground
• Roll Gap Adjustment Device:​ Manual or electric adjustment with high precision
• Transmission System:​ Motor + reducer + gear or chain drive
• Guiding Device:​ Input/output guide wheels ensure smooth sheet operationLight-duty, medium-duty, and heavy-duty metal leveling machines can be customized according to different metal materials and thickness requirements.

Product Advantages

• High Leveling Precision:​ Multi-pass roller design effectively eliminates wavy edges, warping, and sickle bends, improving metal sheet flatness
• Wide Range of Applicable Metals:​ Suitable for carbon steel, galvanized sheet, stainless steel, aluminum plate, copper plate, and other metal materials
• Stable Structure, Reliable Operation:​ Key components use high-strength materials, suitable for long-term industrial continuous production
• Easy Operation and Maintenance:​ Reasonable structure, intuitive parameter adjustment, low maintenance costs, short downtime
• Easy Production Line Integration:​ Can be connected with cold roll forming machines, shearing equipment, punching equipment, etc., for automated production

Technical Parameters

The following are standard metal leveling machine technical parameters; customization supported according to customer requirements

Application Fields

• Cold Roll Forming Machine Production Lines
• Color Steel Sheet, Roof Panel, Wall Panel Production Lines
• C-Section Steel, Z-Section Steel Forming Equipment
• Light Gauge Steel Stud Production Lines
• Metal Sheet Processing and Shearing Production Lines

Why Choose Our Metal Leveling Machine?

We specialize in the R&D and manufacturing of cold roll forming equipment, possessing mature engineering design experience and rich export project experience. Each metal leveling machine is custom-designed according to customer metal material characteristics, thickness range, and production speed requirements, ensuring stable leveling performance, high reliability, and low maintenance costs during long-term operation. Our equipment is highly recognized by domestic and international customers.
