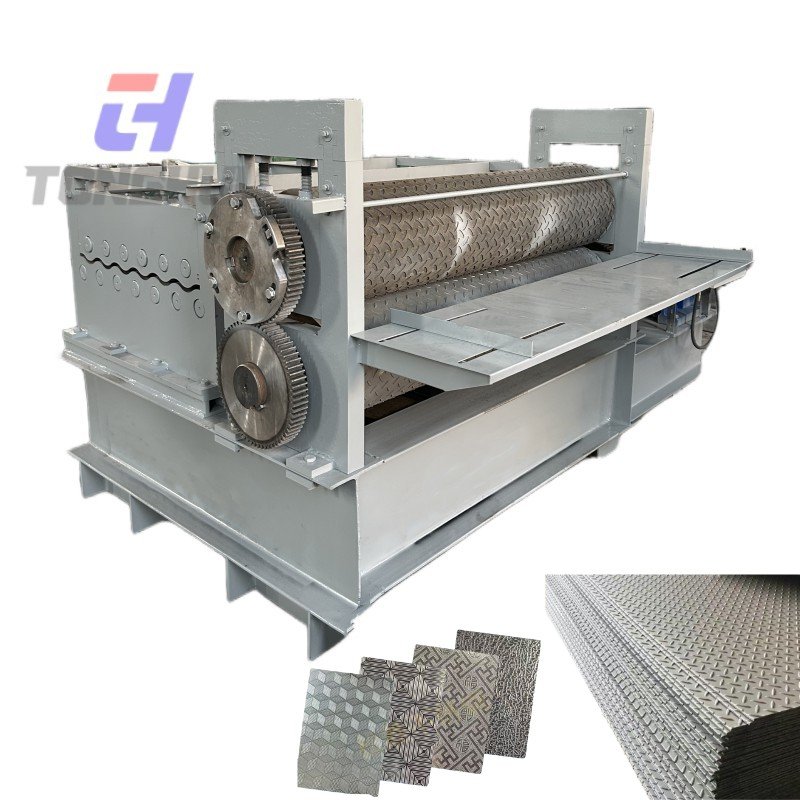

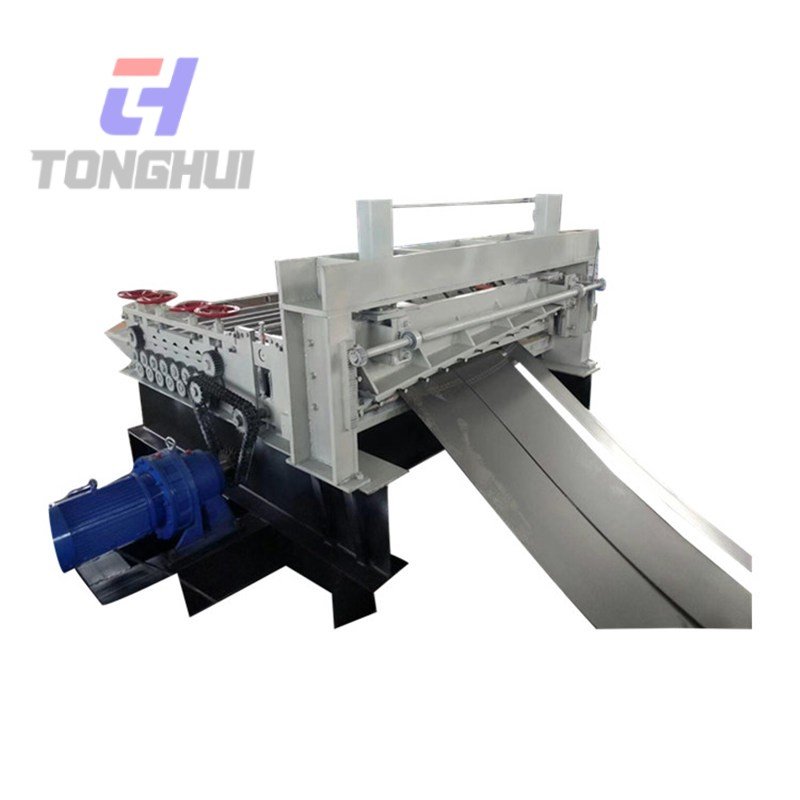

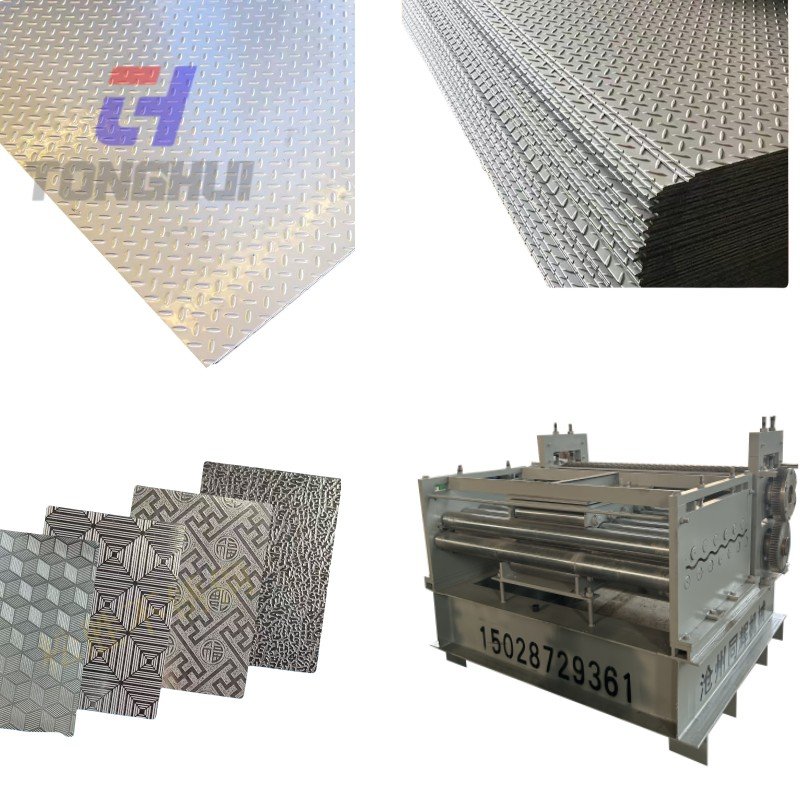

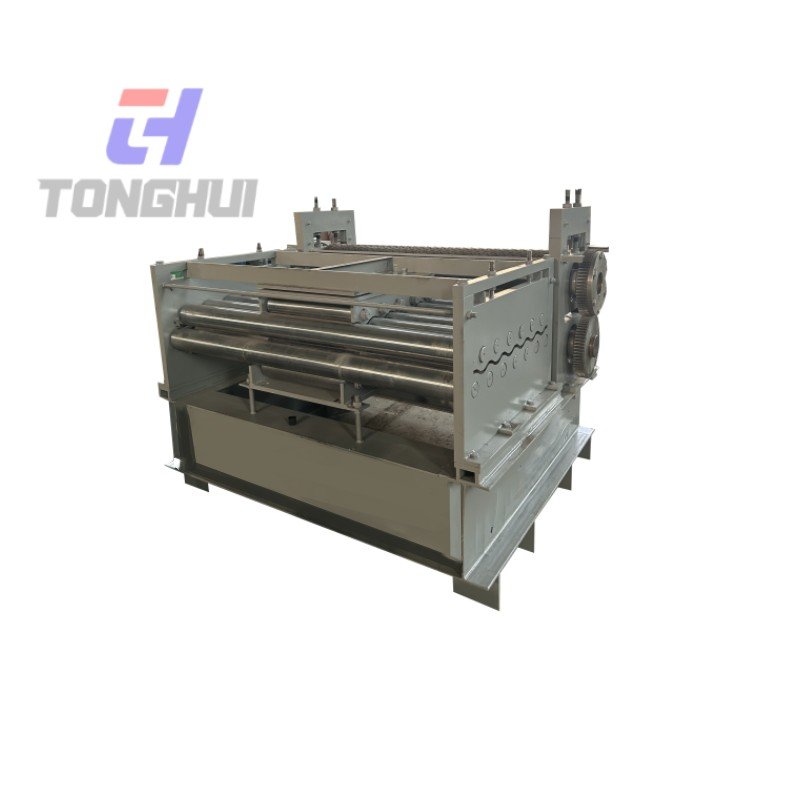

The Metal Embossing Machine is a professional equipment used for continuous embossing, patterning, and texture forming on the surface of metal plates or strips. Through the precise engagement of upper and lower embossing rollers, it creates regular or customized patterns on the metal surface, not only enhancing the product’s decorative effect but also improving the sheet’s slip resistance, strength, and added value.

Working Principle

The metal embossing machine adopts a paired upper and lower embossing roller structure, with the roller surfaces processed according to customer requirements for different patterns. During continuous feeding of the metal sheet, pressure applied by the upper and lower embossing rollers causes plastic deformation on the sheet surface, forming clear and stable embossed patterns.

Basic Workflow:

Metal sheet uncoiling → Enters embossing area → Synchronous patterning by upper/lower embossing rollers → Pattern formation → Output of embossed sheet

This embossing method features continuous forming, clear patterns, high efficiency, and good repeatability, making it suitable for large-scale industrial production.

Equipment Structure

• Overall Frame:​ High-strength steel plate welded structure with good stability and strong vibration resistance

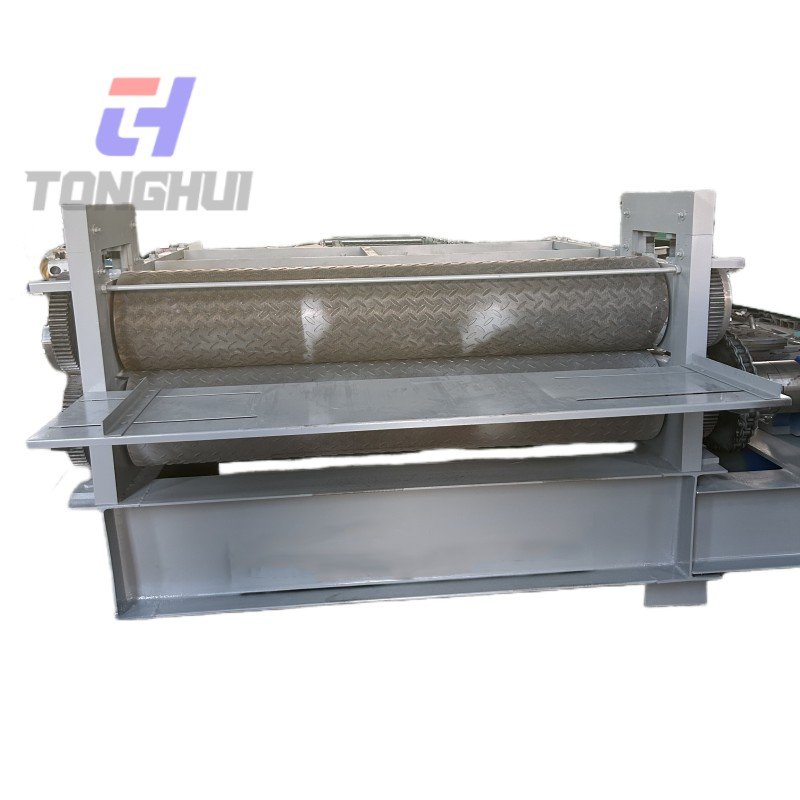

• Embossing Roller System:​ Made of alloy steel or tool steel, precision engraved and heat-treated
• Roll Gap Adjustment Mechanism:​ Manual or hydraulic adjustment to adapt to different sheet thicknesses
• Transmission System:​ Motor + reducer + gear transmission for stable power output
• Guiding and Safety Devices:​ Ensure smooth sheet operation and improve operational safetySingle-pattern or multi-pattern metal embossing machines can be customized according to customer needs, with support for roller replacement.

Product Advantages

• Clear Patterns, High Aesthetics:​ High-precision processing technology ensures clear, consistent patterns and stable surface effects
• Wide Range of Applicable Metals:​ Suitable for color steel plates, galvanized sheets, stainless steel plates, aluminum plates, and other metal materials
• High Production Efficiency:​ Continuous embossing operation, suitable for integration with cold roll forming production lines
• Stable Structure, Long Service Life:​ Core components use high-strength materials, suitable for long-term industrial operation
• Customizable Design:​ Embossing patterns, sheet width, and thickness range can be customized according to customer requirements

Technical Parameters

The following are standard metal embossing machine parameters; non-standard customization is supported

Application Fields

• Color steel plate, decorative panel production lines
• Roof panel, wall panel processing equipment
• Pre-treatment or post-treatment in cold roll forming production lines
• Home appliance casing, metal panel manufacturing
• Building and industrial decorative metal products

Why Choose Our Metal Embossing Machine?

We specialize in the R&D and manufacturing of cold roll forming and metal sheet processing equipment, possessing rich engineering design and export experience. Each metal embossing machine is custom-designed according to customer material characteristics and pattern requirements, ensuring stable embossing effects, high production efficiency, and low maintenance costs during long-term operation. It is highly suitable for export markets and large-scale production.
