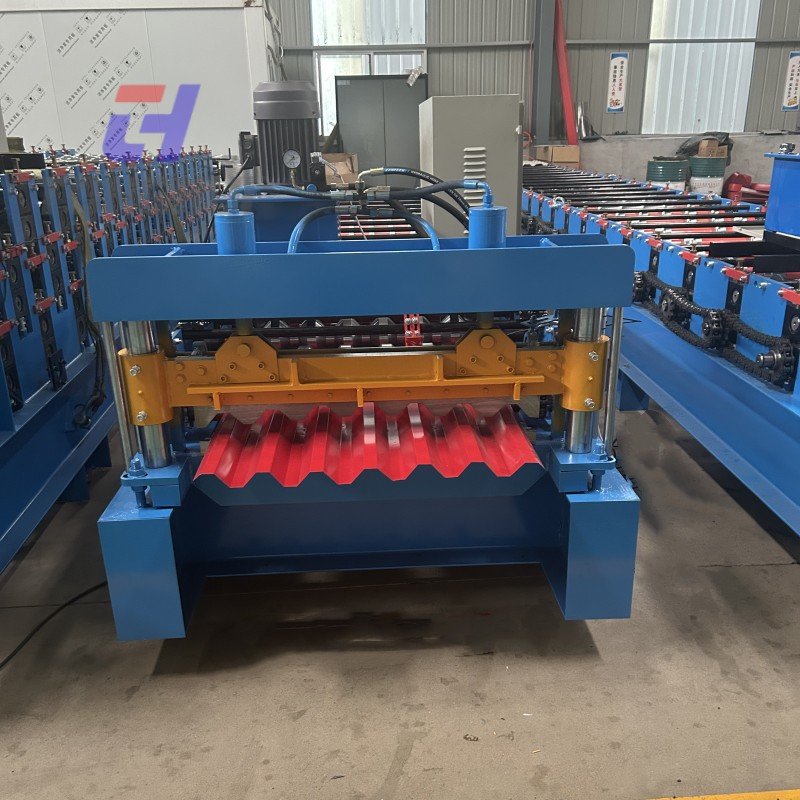

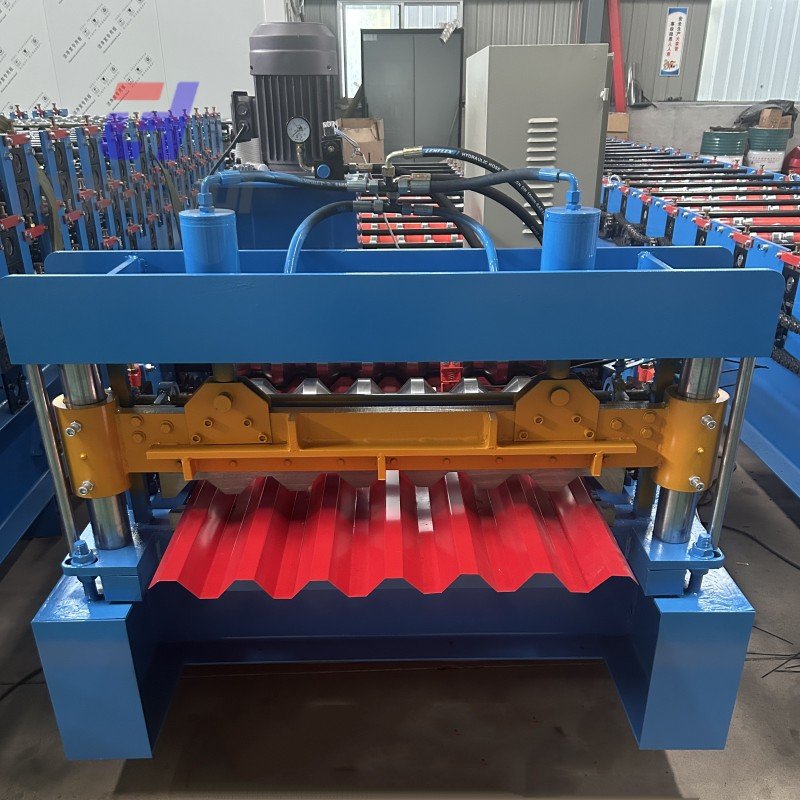

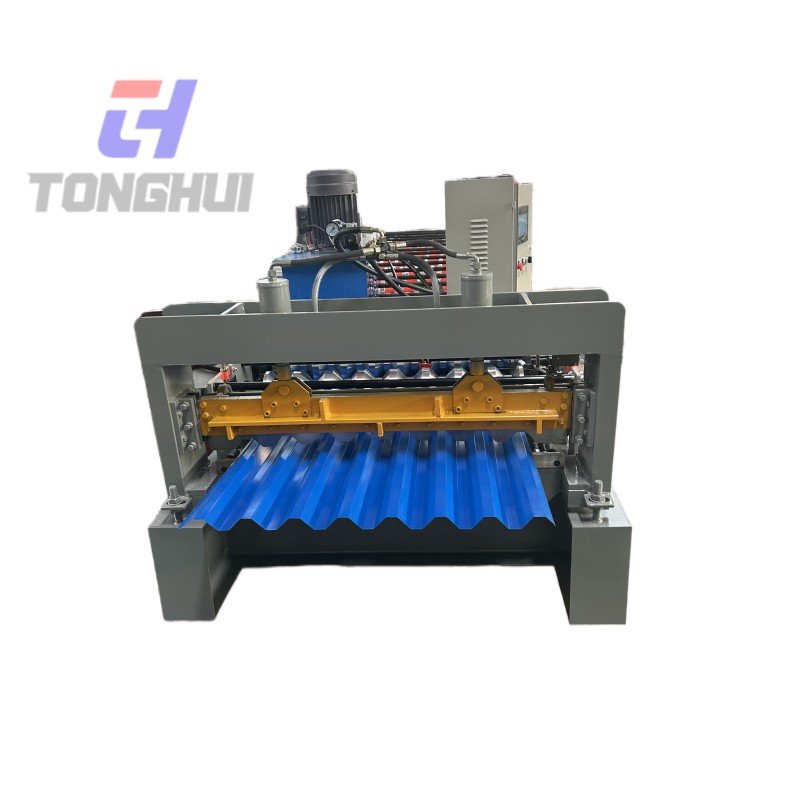

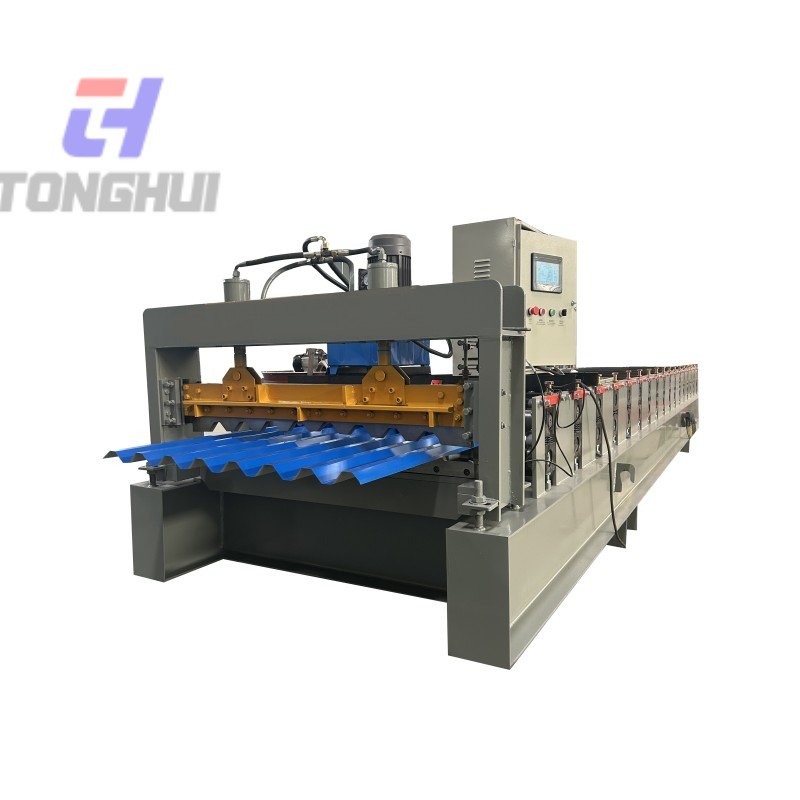

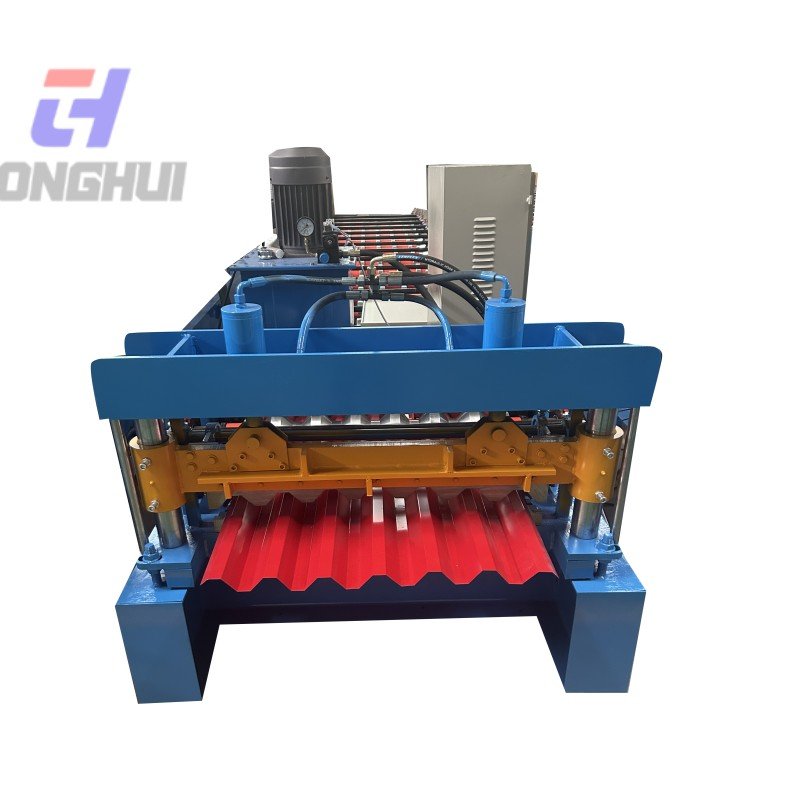

The XX Series Horizontal Cladding Panel Cold Roll Forming Machine is a high-performance roll-forming equipment developed for large-scale production of building exterior wall horizontal cladding panels, metal curtain wall panels, industrial partition panels, and similar products. Utilizing advanced continuous cold-bending technology, it efficiently and stably processes galvanized sheets, color-coated plates, aluminum coils, stainless steel coils, and other metal materials into precisely dimensioned, flat-surfaced horizontal cladding profiles.

Core Product Advantages​

1. High-Precision Forming with Excellent Consistency​Equipped with a high-precision gearbox transmission system and reinforced box-type frame structure, the machine ensures synchronized operation of all forming rollers even at high speeds, guaranteeing accurate and stable profile shapes. Consistent dimensions and sharp edges are maintained throughout continuous production.
2. Durability for Long-Term Continuous Operation​Key forming rollers and transmission components are made of high-strength alloy steel (GCr15/42CrMo) and treated with high-frequency quenching or heat treatment, offering exceptional wear resistance and fatigue performance. The robust structure minimizes vibration, reducing failure rates and maintenance costs.
3. Quick Size Changeover for Flexible Production​The machine allows rapid specification switching by replacing forming molds for different panel profiles. Optional quick mold-changing systems and user-friendly adjustments significantly reduce downtime, catering to small-batch or customized orders.
4. Intelligent Control for Simplified Operation​Featuring variable frequency speed regulation and optional PLC control with HMI interface, the machine enables digital parameter setting, real-time monitoring, and automatic counting. Combined with servo tracking cutting systems, it achieves high-precision fixed-length cutting, reducing reliance on skilled operators.
5. Optimized Roller Design for Higher Material Utilization​Based on mature metal deformation databases and engineering simulations, the roller arrangement and forming path are scientifically designed to minimize internal stress and springback, ensuring profile quality while maximizing material utilization and reducing unit costs.

Typical Applications​

• Exterior wall horizontal cladding panels
• Metal curtain wall systems
• Industrial and commercial partition panels
• Factory and public building facades
• Custom architectural metal decorative panels

Technical Parameters​

​


​

Why Choose Our Horizontal Cladding Panel Forming Machine?​

We specialize in the R&D, design, and manufacturing of cold roll forming equipment, backed by an experienced engineering team and extensive export expertise. Each machine is customized based on panel profiles, material characteristics, and production requirements, ensuring industry-leading precision, stability, and longevity. Our equipment is widely used in domestic and international architectural panel projects, delivering reliable performance and earning long-term client trust.
