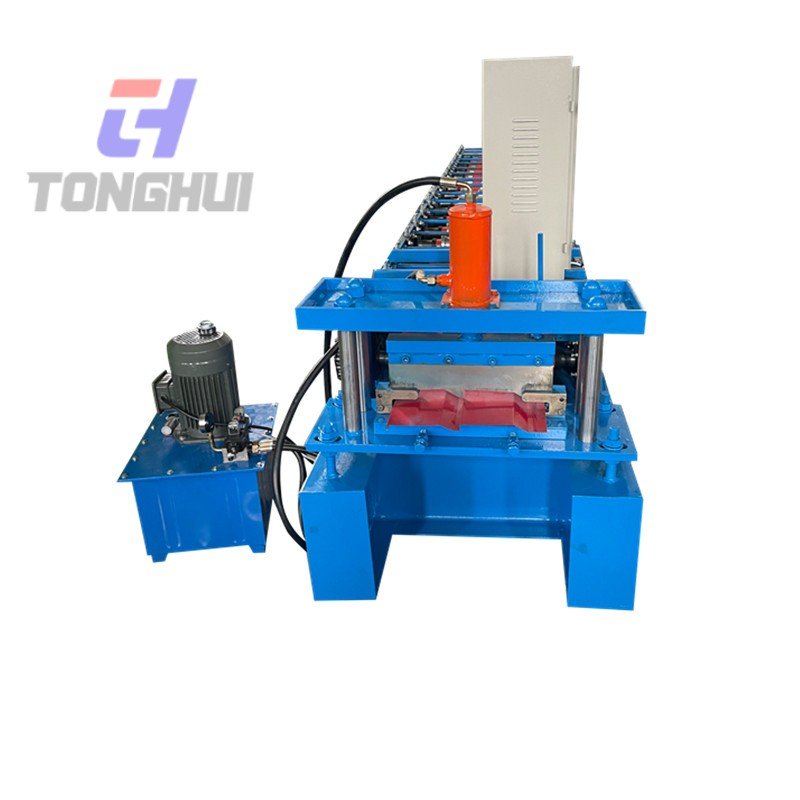

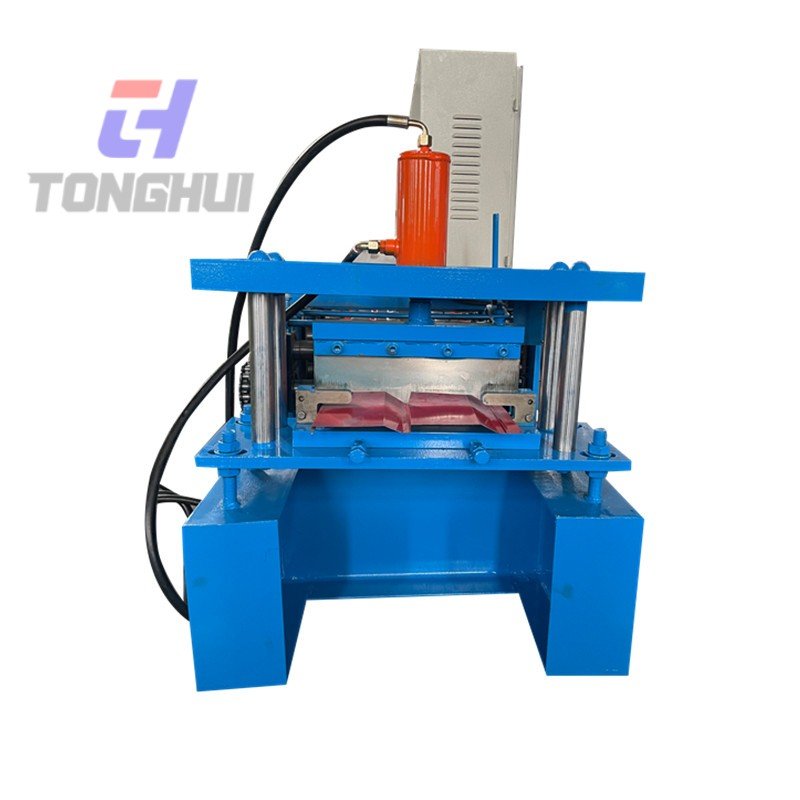

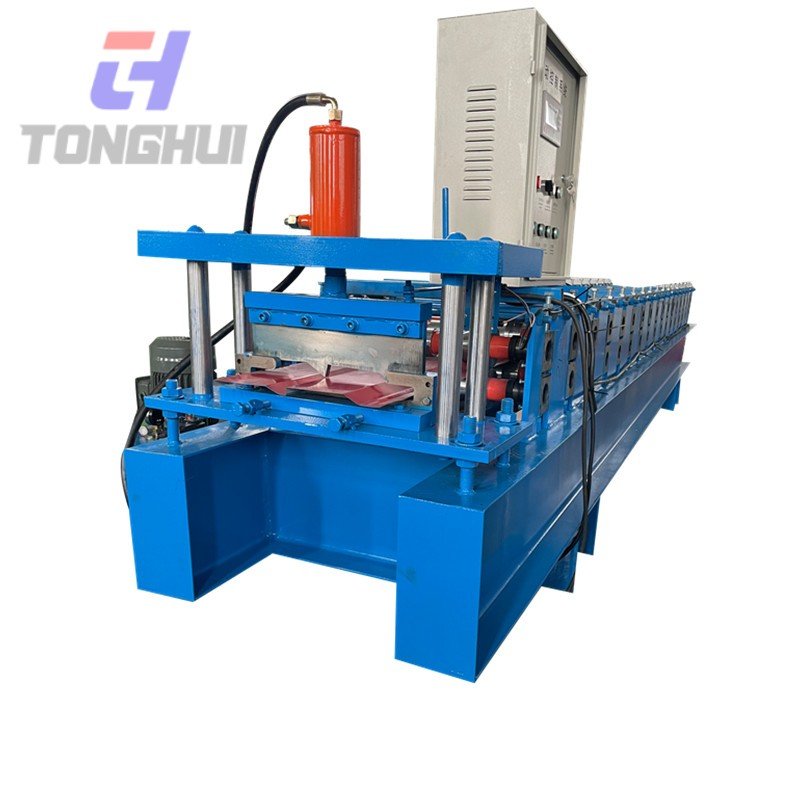

High-Precision Roll Forming Solution for Building Exterior Wall Horizontal Cladding Panels

Product Overview​

The Horizontal Cladding Panel Cold Roll Forming Machine is a high-efficiency roll-forming equipment specifically designed for producing metal horizontal cladding panels, decorative panels, and curtain wall panels for building exteriors. Utilizing continuous cold-bending technology, it processes galvanized steel, color-coated plates, aluminum plates, stainless steel, and other metal coils into aesthetically pleasing, dimensionally accurate, and easy-to-install horizontal cladding profiles.

Core Advantages​

1. High Forming Precision and Excellent Profile Consistency​The machine employs a high-precision gearbox transmission system combined with a multi-stage cold roll forming structure, ensuring synchronized operation of all roller stations. Even at high production speeds, it maintains clear panel contours, stable dimensions, and a flat, wave-free surface.
2. Robust Structure for Long-Term Continuous Operation​Featuring a heavy-duty box-type frame with welded and stress-relieved critical load-bearing areas, the machine offers strong rigidity and excellent vibration resistance. Key forming rollers and transmission components are made from high-strength alloy steel, suitable for long-term, high-load continuous production.
3. Flexible Size Changeover for Diverse Specifications​To accommodate different cladding panel profiles and installation methods, the machine supports customized roller design. Quick product specification changes are achieved by replacing the forming molds, ideal for multi-variety, small-batch, or custom order production models.
4. Automated Control for Simplified Operation​Standard with variable frequency speed control systems, the machine can be optionally equipped with PLC control and an HMI (Human-Machine Interface) for digital parameter setting, automatic counting, and fault alerts. The cutting system supports hydraulic punching or servo tracking cut-off, ensuring high length accuracy.
5. Optimized Forming Path for Material Cost Savings​Roller design is based on extensive cold-forming experience and material deformation principles, ensuring rational stress distribution during forming. This effectively reduces material stretching and springback, enhancing product quality while minimizing material waste.

Applicable Materials

• Galvanized Steel (GI)
• Color-Coated Steel (PPGI)
• Aluminum Coil / Aluminum-Magnesium-Manganese Alloy
• Stainless Steel Plate

Application Fields

• Building Exterior Wall Horizontal Cladding Panels
• Metal Curtain Wall Systems
• Industrial and Commercial Building Facades
• Decorative Envelope Systems for Public Buildings
• Custom Architectural Metal Panels

Technical Parameters Table for Horizontal Cladding Panel Cold Roll Forming Machine

​


​

Why Choose Our Horizontal Cladding Panel Cold Roll Forming Machine?

As a professional manufacturer of cold roll forming machines, we specialize in the research, development, and manufacturing of equipment for architectural metal panel forming. We provide one-on-one solution design based on your specific panel profile, material thickness, and production capacity requirements. Our machines are renowned for their high stability, excellent forming precision, and long service life, and have been successfully exported to numerous countries and regions.
