I. Greenhouse Wiggle Wire Channel Roll Forming Machine | Greenhouse Steel C Channel Roll Forming Machine

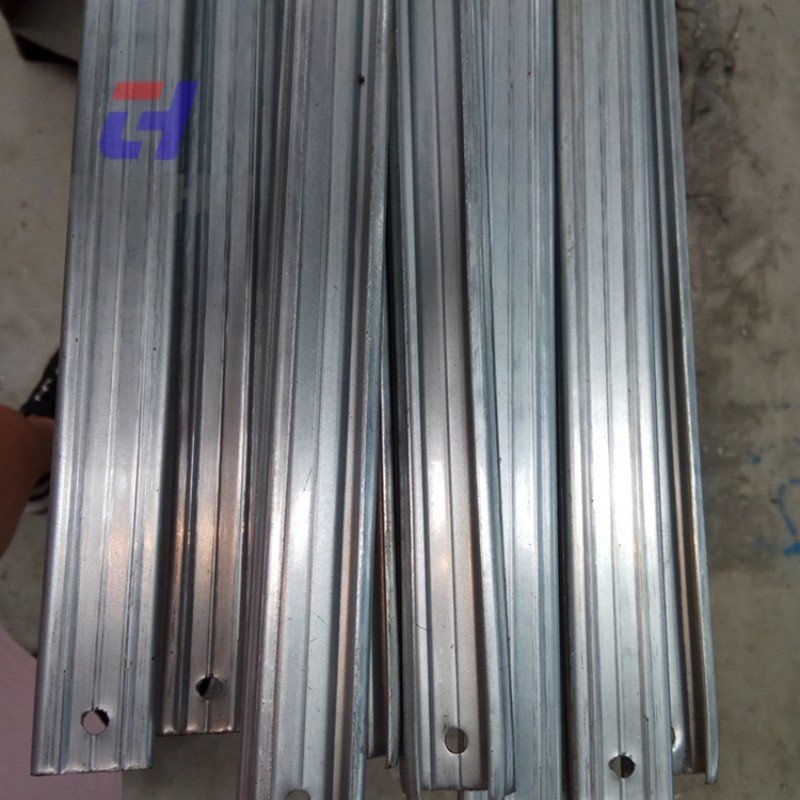

The Greenhouse Wiggle Wire Channel Roll Forming Machine is primarily used to produce various specifications of greenhouse wiggle wire channels, including U-type channels, C-type channels, galvanized steel channels, and aluminum alloy channels (optional). Used together with greenhouse wiggle wire, the channels securely fasten the greenhouse plastic film, making them indispensable structural components in greenhouse construction.

Key Features

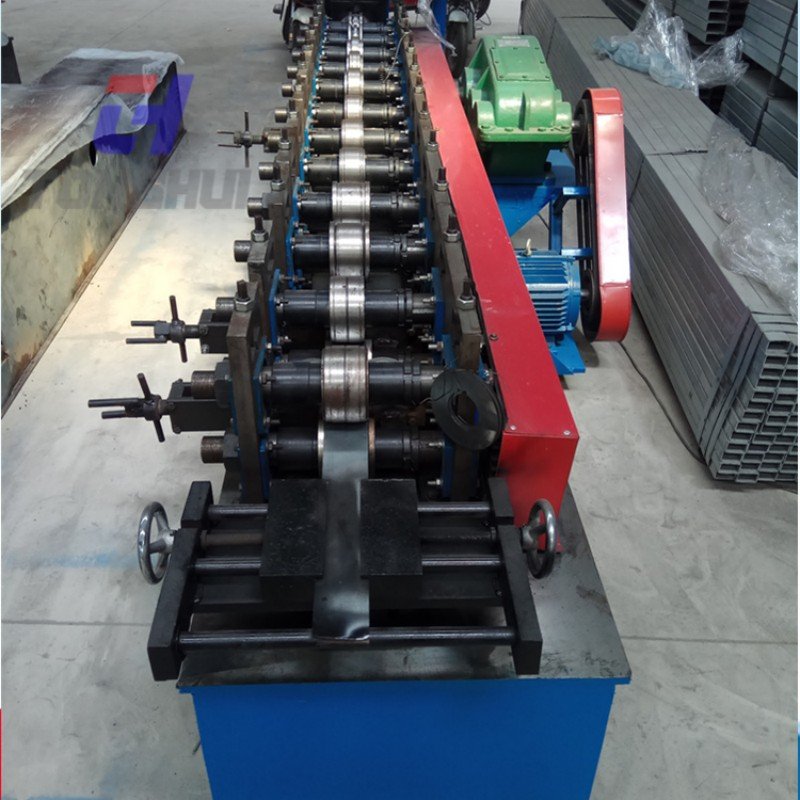

• Fully Automatic Production Line: Integrated operation from decoiling -> forming -> straightening -> cutting.
• High-Precision Rollers: Made from Cr12 or GCr15 material, offering high hardness and wear resistance.
• Stable Structure: Frame welded from 350H steel, minimizing vibration.
• High-Speed Production: Standard production speed of 10-20 meters/minute.
• Compatible with Multiple Materials: Galvanized steel strip, aluminum strip, stainless steel (optional).
• Customizable Molds: Can meet different national standards for greenhouse channels.
• Easy Maintenance: Stable electrical control system, low failure rate.
• Supports Custom LOGO Embossing (Common for export clients).
• Application Areas:​ Agricultural greenhouses, vegetable tunnel greenhouses, multi-span greenhouse projects, aquaculture greenhouses, foreign trade greenhouse配件 sales. If you have a sample channel, you can provide it to us for designing the rollers and channel drawings 1:1 based on the sample.

II. Technical Parameters Table

III. Frequently Asked Questions

Q1: What types of channels can your machine produce?

A1:​ It can produce U-type, C-type, thickened/widened types, types with stiffening ribs, and channels meeting various national standards. Customization is available based on samples or drawings.

Q2: Can the equipment handle different materials?

A2:​ Yes, it can process galvanized steel strip, aluminum plate, and stainless steel plate, with thicknesses ranging from 0.3mm to 1.2mm.

Q3: Can the finished product length be customized?

A3:​ Yes, the length can be set arbitrarily via the PLC, such as 2m, 3m, 4m, 6m, etc.

Q4: Do you provide installation and training?

A4:​ Yes, we support remote video guidance and can also dispatch engineers for on-site installation.

Q5: What is the delivery time?

A5:​ Standard models: 15-25 days; Customized models: 30-40 days.

Q6: How do you ensure the channels won’t scratch the greenhouse film?

A6:​ The rollers are precision polished, and the edges feature a chamfered design, resulting in a smooth, burr-free finished surface that prevents film damage.
