Creating Durable, Aesthetic, and Cost-Effective Modern Roofing Solutions

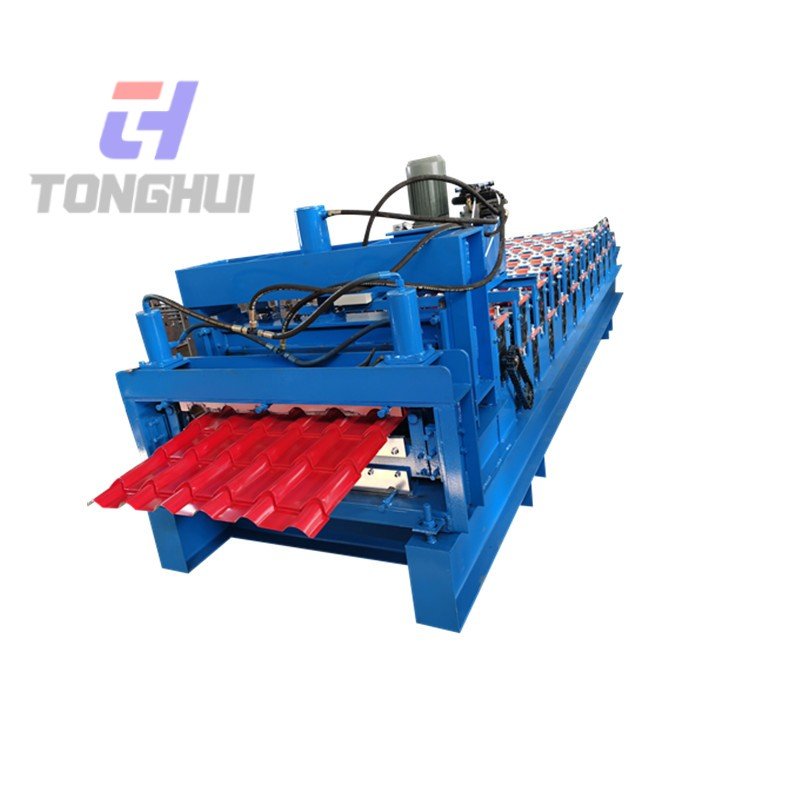

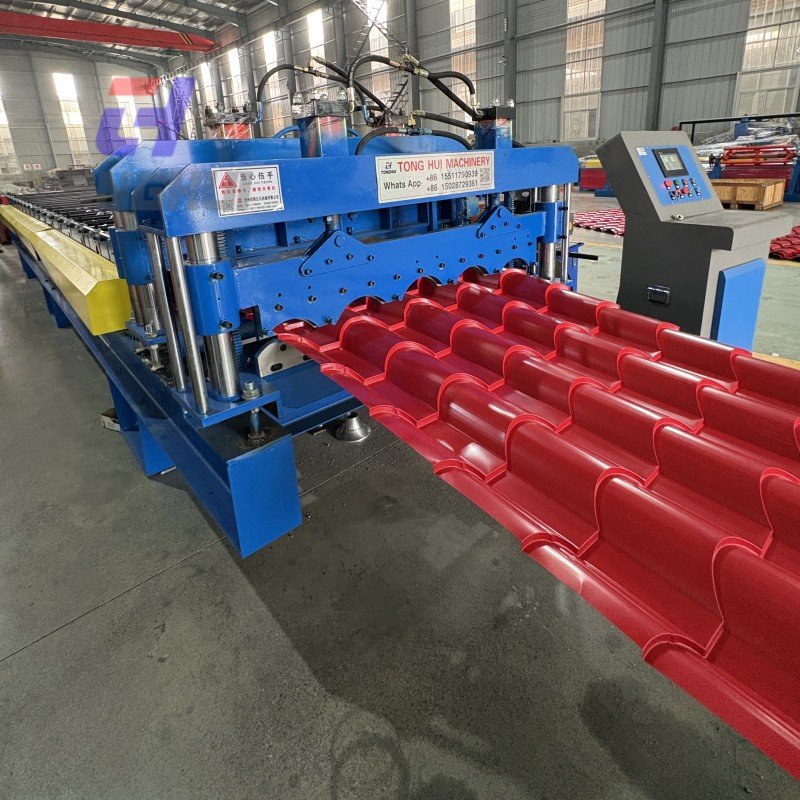

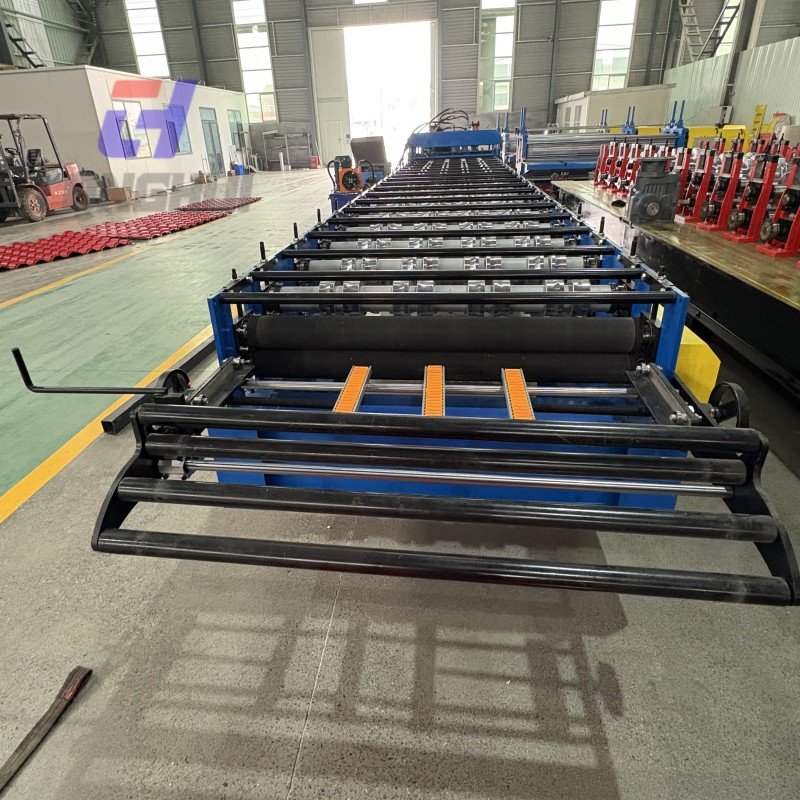

The Glazed Tile Roll Forming Machine is a high-end cold roll forming equipment specifically designed for producing metal antique-style glazed tiles, wave tiles, and decorative roof tiles. This equipment utilizes an advanced process combining continuous roll forming and hydraulic profiling. It efficiently processes metal coils such as color-coated steel sheets, aluminized zinc sheets, galvanized sheets, and aluminum-magnesium-manganese sheets into high-quality roofing tiles that combine the appearance of traditional glazed tiles with the performance of modern metal roofing.

Core Advantages & Technical Features

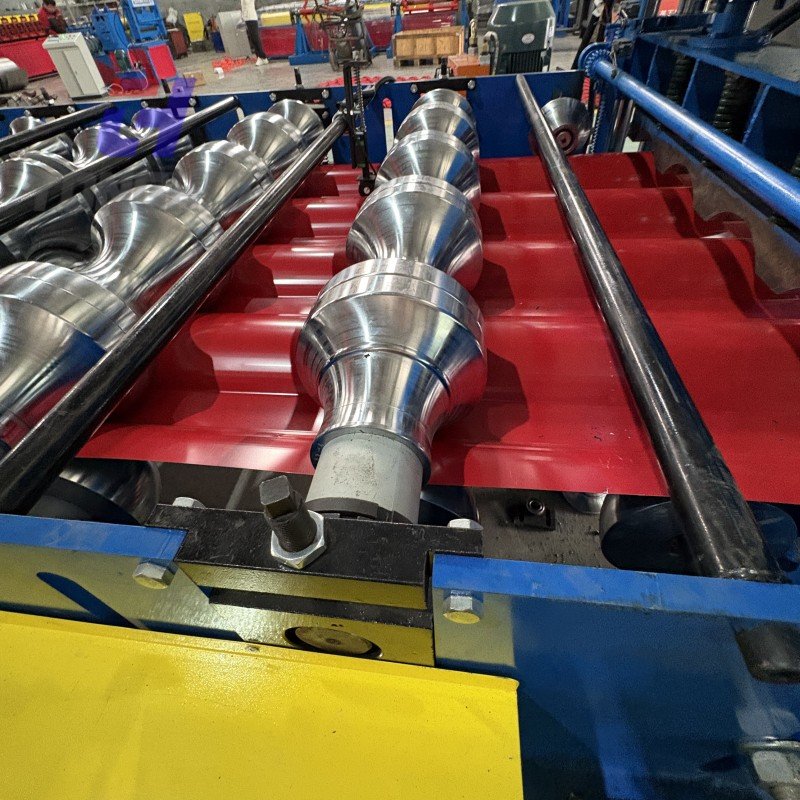

1. Highly Realistic Aesthetic Effect of Antique Glazed TilesThrough precision-designed forming rollers and dedicated hydraulic profiling molds, the equipment accurately replicates the tile curves, overlapping layers, and drip structures of traditional glazed tiles. The formed tiles have a strong three-dimensional sense, smooth lines, and outstanding decorative effects, meeting the stringent appearance requirements of high-end architecture.
2. Excellent Durability and Comprehensive Protective PerformanceThe metal substrate, combined with high-performance surface coatings (such as PVDF, HDP, PE), gives the finished glazed tiles superior weather resistance, corrosion resistance, fire resistance, and UV resistance. Their service life far exceeds that of traditional clay tiles, making them particularly suitable for roofing projects long-term exposed to complex climatic environments.

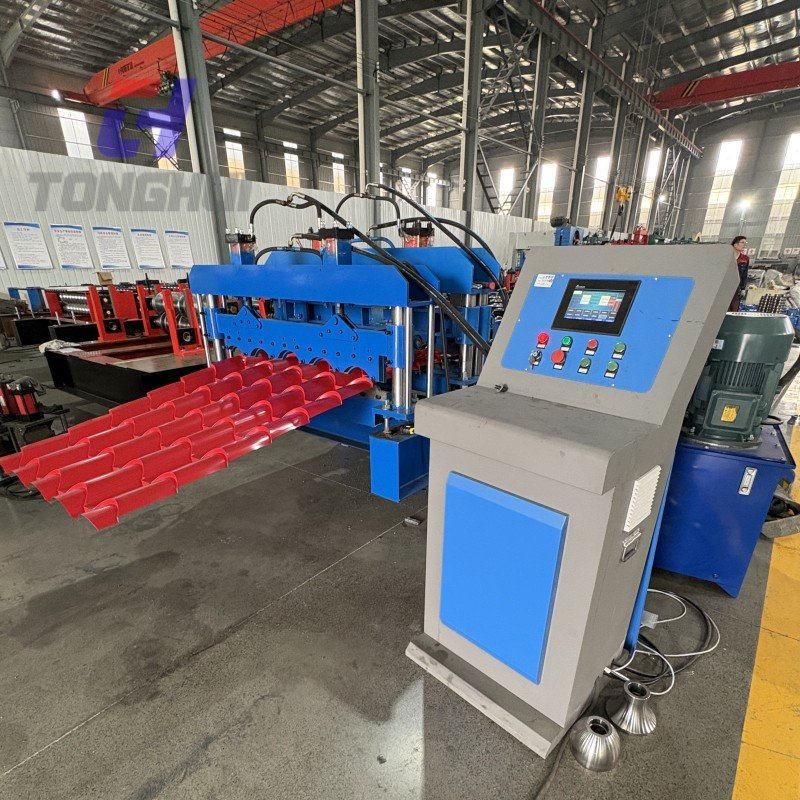

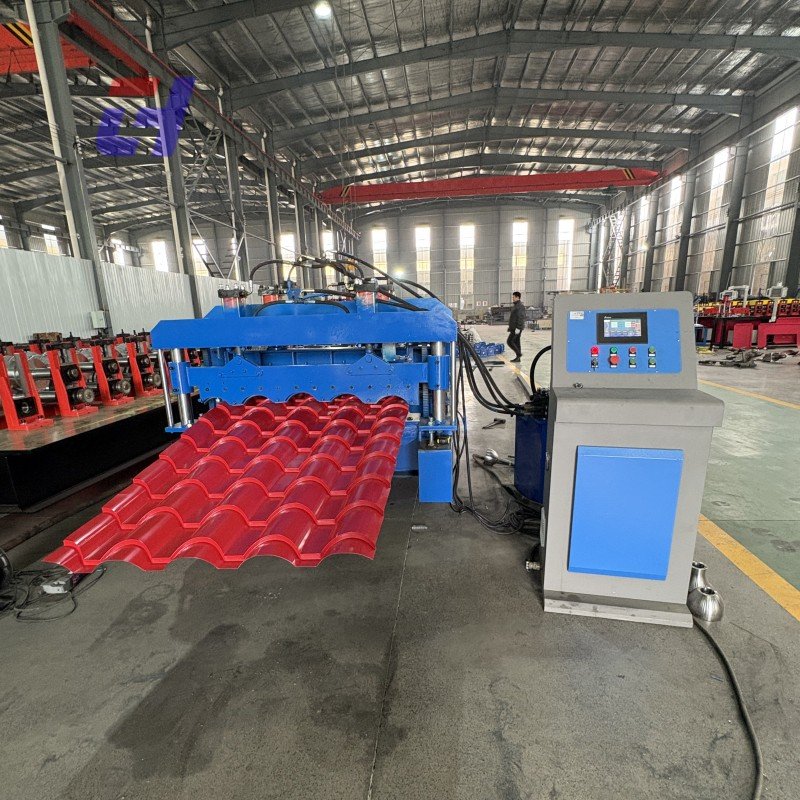

3. Efficient, Fully Automated Production CapacityThe equipment adopts an industrial-grade PLC intelligent control system, coupled with servo drive or frequency conversion drive technology, enabling precise control of production speed, forming cycle, and cut-off length. Production speeds can reach 12-30 meters/minute, significantly increasing output per unit time and reducing reliance on manual labor.
4. Excellent Structural Strength and Wind ResistanceThrough scientific roll design and hydraulic pressing technology, reasonable longitudinal and transverse reinforcement structures are formed inside the tile during production. This gives the finished product outstanding resistance to wind pressure, snow load, and other loads, making it suitable for windy, heavy snow, and other special regions.
5. Controllable Costs, Energy Saving, and Environmental ProtectionMetal glazed tiles are lightweight per unit area, significantly reducing the load on the roof structure and transportation costs. The production process requires no high-temperature firing, resulting in low energy consumption, no pollution, and recyclable scrap material, aligning with modern construction’s requirements for energy saving and environmental protection.
6. Strong Customization CapabilityThe equipment can be customized to produce different types and specifications of glazed tiles based on customer requirements, including but not limited to:
   • Barrel Tiles / Flat Tiles
   • S-Tiles / Wave Tiles
   • Different Tile Lengths, Widths, Heights
   • Various Color and Coating Systems

Main Application Fields

• Antique Architecture & Chinese-style Buildings: Temples, Taoist temples, ancient building restoration, pavilions.
• Cultural Tourism & Scenic Area Buildings: Tourist attractions, cultural parks, characteristic towns.
• Commercial & Public Buildings: Hotels, clubs, commercial streets, exhibition halls.
• High-end Residential Roofing: Chinese-style villas, custom homes.
• Overseas Market Projects: Regions requiring Oriental architectural styles and high-performance roofing systems.

Glazed Tile Roll Forming Machine Technical Parameters

The following are standard configuration parameters; specific solutions can be customized based on tile drawings, capacity requirements, and material specifications.

​


​

Why Choose Our Glazed Tile Roll Forming Machine

As a professional manufacturer of cold roll forming equipment, we possess mature design experience and a complete manufacturing system in the field of glazed tile and roof panel forming. Each set of equipment is specifically designed around the customer’s tile structure, material characteristics, and production targets, ensuring industry-leading levels in equipment stability, forming quality, and long-term operating costs.
