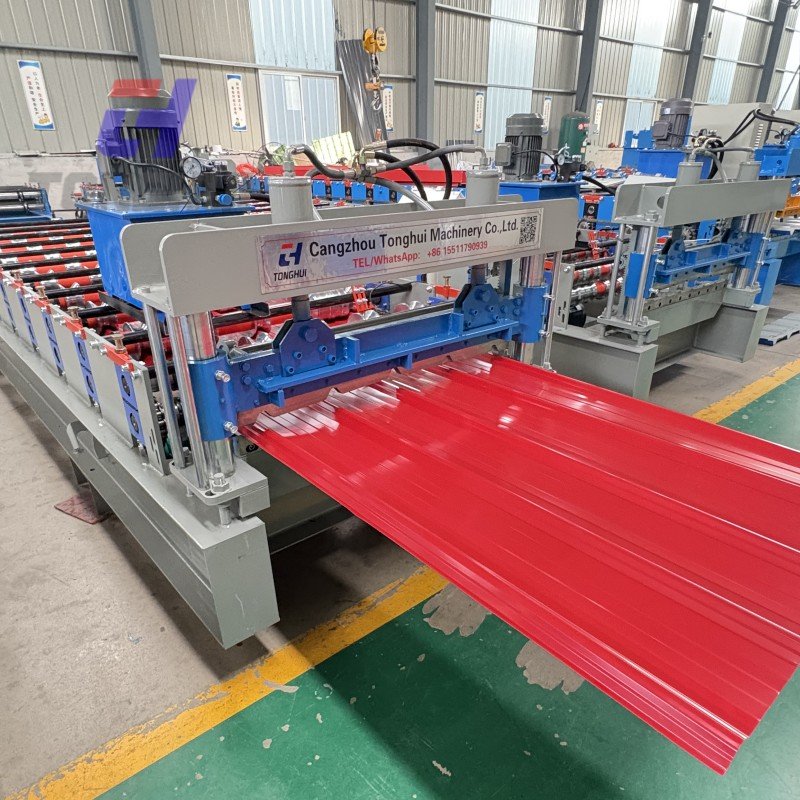

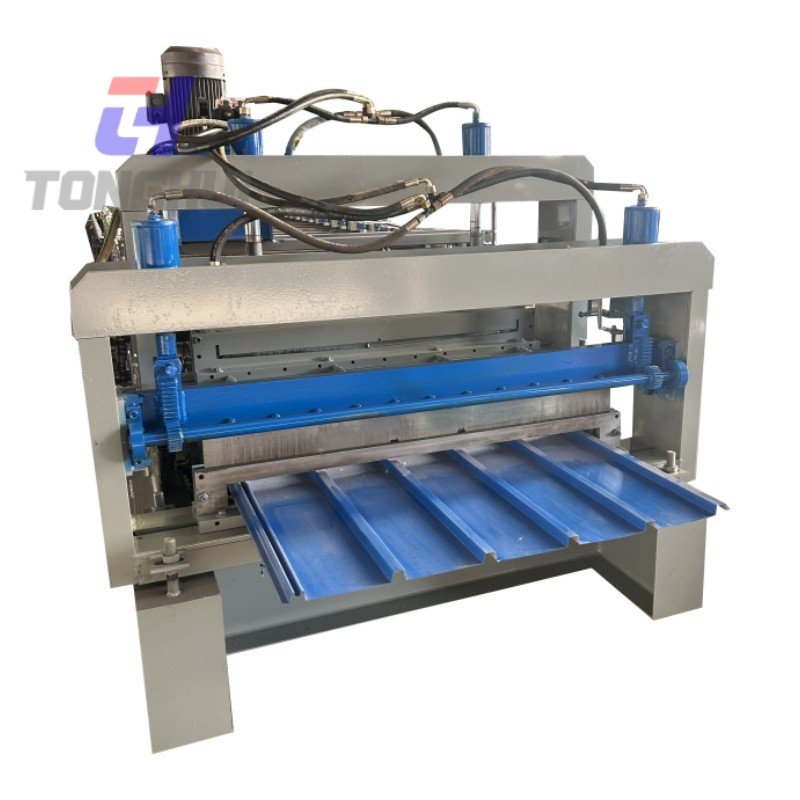

Cold Roll Press Forming Machine is a high-precision processing equipment that continuously cold-bends metal sheets or strips through multiple sets of rollers. Utilizing the principle of plastic deformation of metal, it processes steel plates, galvanized sheets, stainless steel plates, color-coated plates, or aluminum plates into various cross-sectional shapes such as formed steel, roof panels, wall panels, light steel keels, or industrial profiles.

Product Details

This equipment boasts advantages like compact structure, easy operation, high forming precision, and stable efficiency, making it essential for small to medium-sized cold roll press forming production lines and metal profile processing workshops.

Working Principle

The Cold Roll Press Forming Machine applies continuous plastic deformation to metal sheets through multiple sets of cold-forming rollers, gradually shaping the sheets into the desired cross-section. The sheet, guided by uncoiling, leveling, and guiding devices, enters the machine frame. Internal stresses are released during the step-by-step forming process by the rollers, and the finished product is output via a cutting device.

Workflow:

Uncoiling → Leveling → Feeding into Cold Roll Press Forming Machine → Step-by-step forming by rollers → Cutting → Output of formed product

Main Equipment Structure

• Frame Structure:​ Made of high-strength steel plate welding, undergoes overall aging treatment to ensure rigidity and stability.

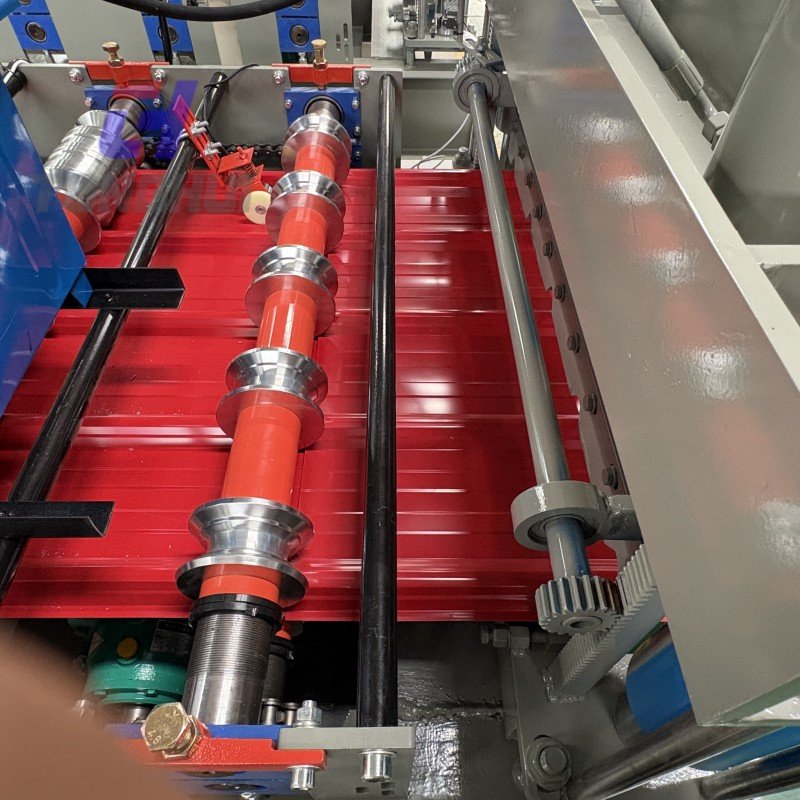

• Forming Roller System:​ Manufactured from high-quality alloy steel, surface hardened and precision ground.
• Transmission System:​ Motor + reducer + gear transmission, ensuring stable power output.
• Feeding and Guiding Device:​ Ensures smooth entry of the sheet into the forming machine.

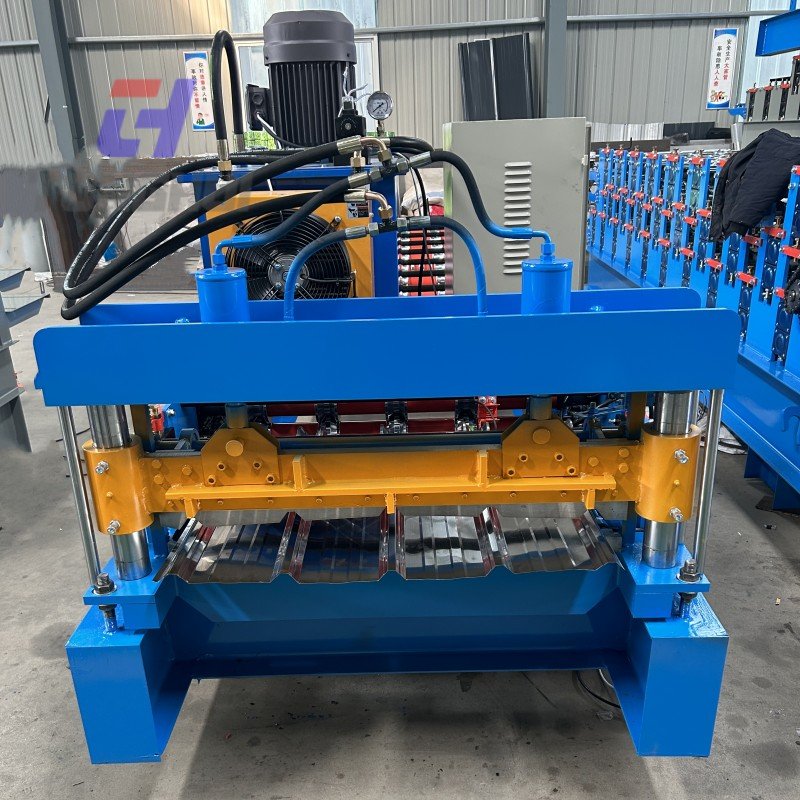

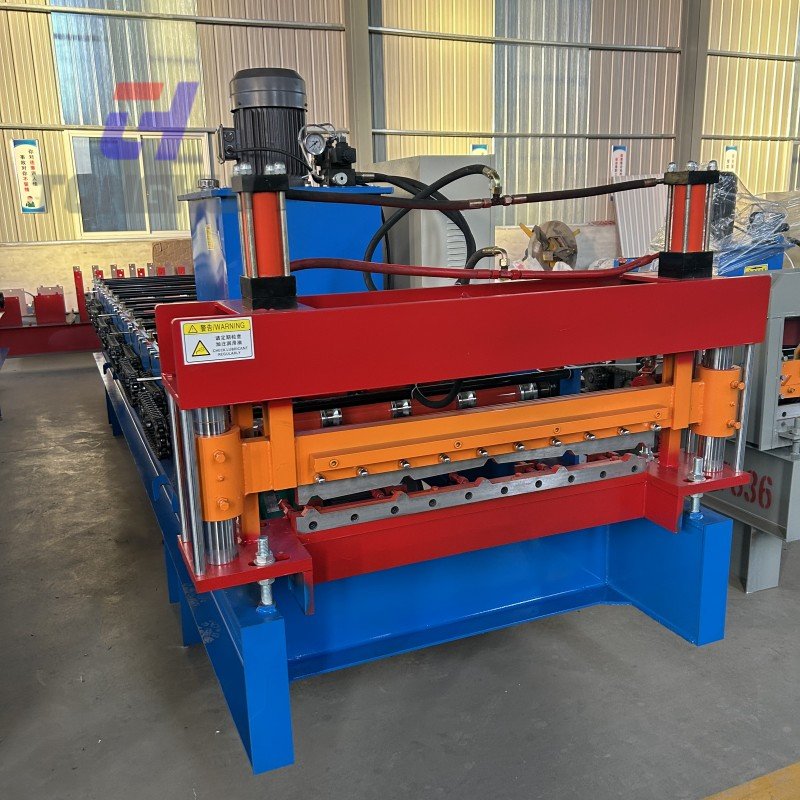

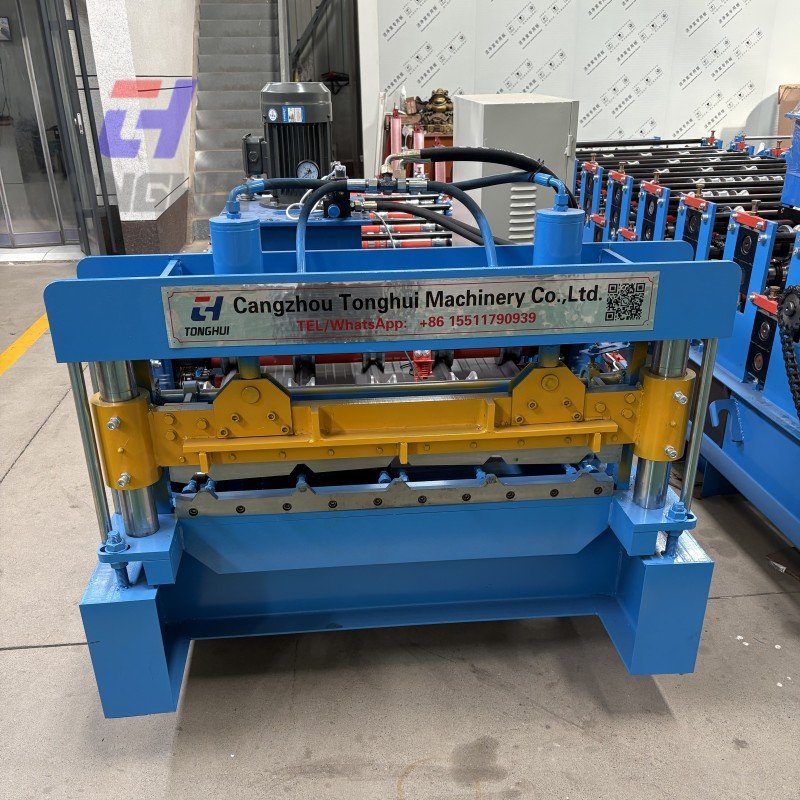

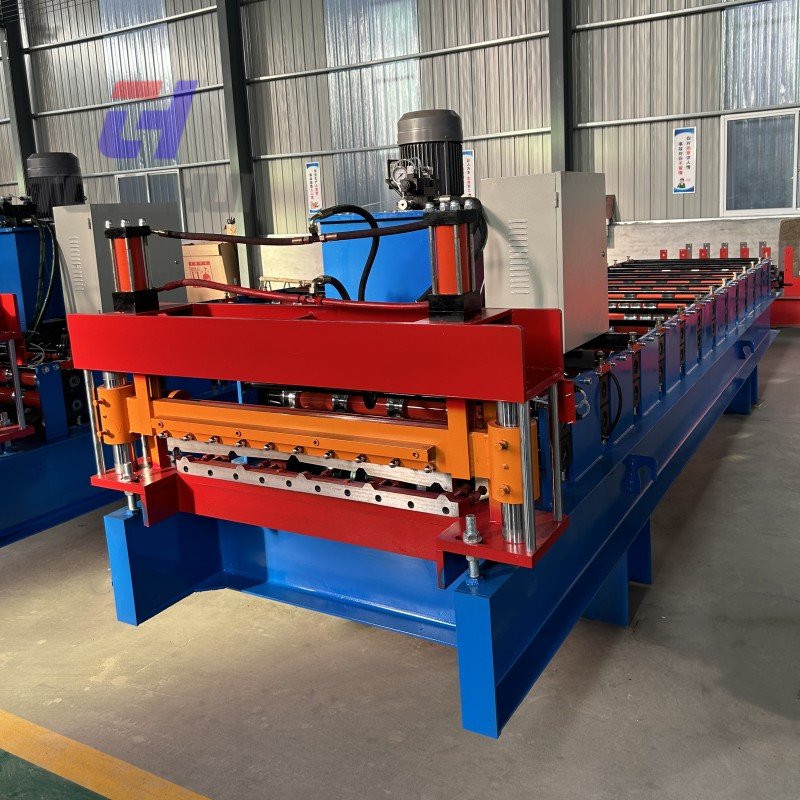

• Cutting Device:​ Hydraulic or mechanical cutting, ensuring finished product length and cross-sectional accuracy.

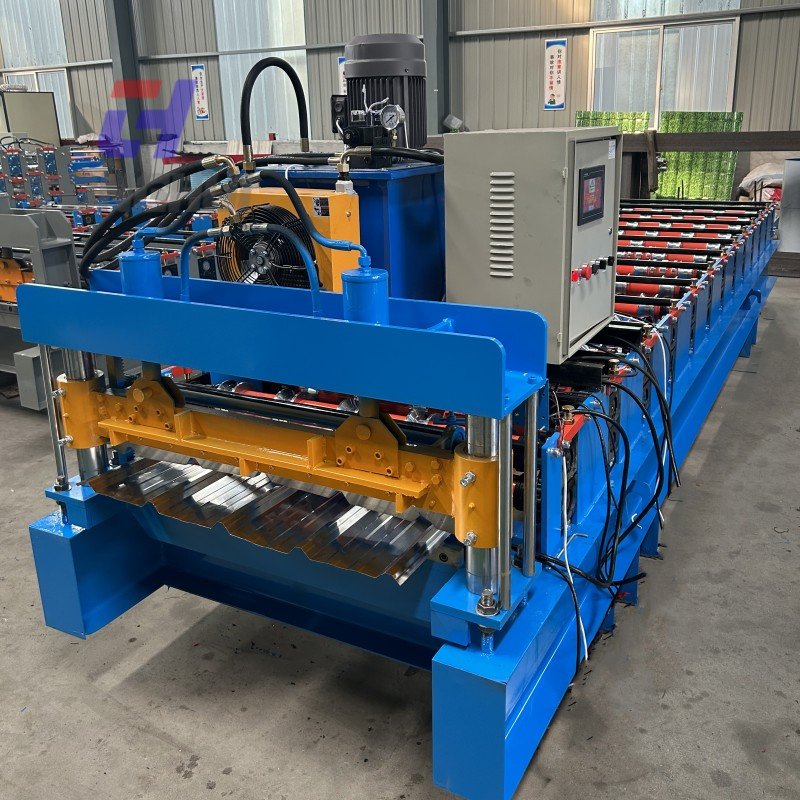

• Control System:​ PLC control, enabling semi-automatic or fully automatic operation.

Can be customized according to different sheet thicknesses, widths, and cross-sectional shapes to meet various production line needs.

Product Advantages

• High Forming Precision:​ Multi-pass roller design ensures stable profile cross-sectional dimensions and high flatness.
• Wide Range of Applicable Materials:​ Suitable for carbon steel, galvanized sheet, color-coated sheet, stainless steel plate, and aluminum plate, among other metal materials.
• Efficient and Stable:​ Strong continuous production capability, suitable for small and medium-sized industrial production lines.
• Easy Operation and Maintenance:​ Intuitive PLC control system, low maintenance costs.
• Easy Production Line Integration:​ Can be integrated with uncoilers, levelers, cutting machines, etc., to form a complete cold roll press forming production line.

Technical Parameters

Application Fields

• Small to medium-sized cold roll press forming production lines
• Roof panel, wall panel, color steel sheet production
• C-section steel, Z-section steel profile production
• Light steel keel and building profile production
• Industrial metal profile processing workshops

​


​

Why Choose Our Cold Roll Press Forming Machine

We specialize in the research, development, and manufacturing of cold roll press forming equipment. Leveraging rich engineering design experience and export project experience, we provide customers with Cold Roll Press Forming Machines featuring high precision, high stability, and low maintenance costs. Each machine can be customized according to sheet thickness, material type, and formed cross-section, ensuring long-term stable operation of the production line and meeting both domestic and international market demands.
