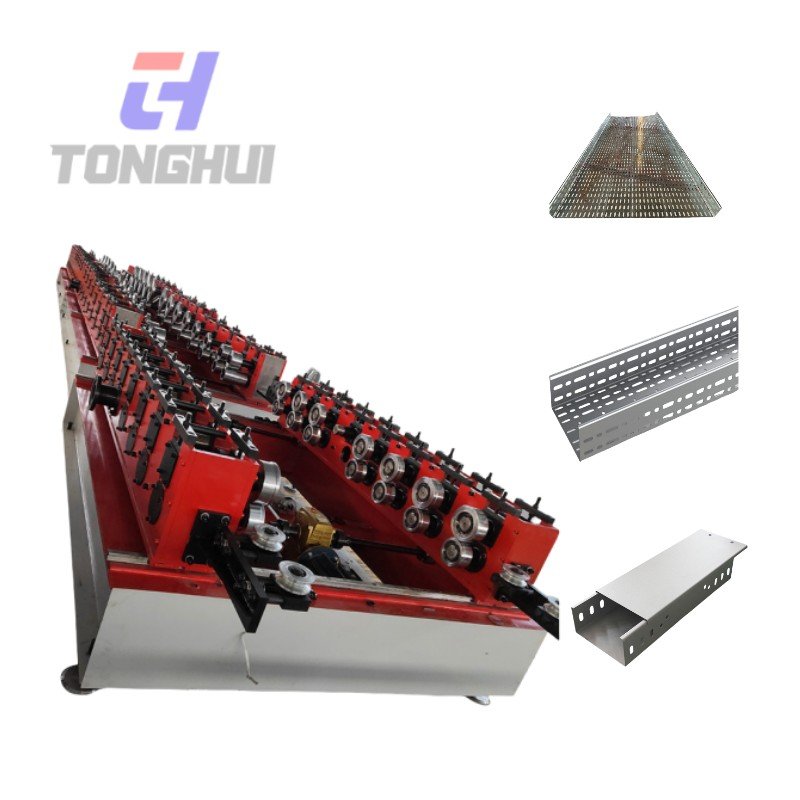

Cable tray roll forming machine

Cable tray roll forming machine

The Cable Tray Roll Forming Machine is a high-efficiency, automated forming equipment specifically designed for the cable tray manufacturing industry. Utilizing cold-forming technology, it can precisely produce various types of cable trays, such as ladder-type trays, trough-type trays, and channel-type trays, at high speeds. It is widely used in industries like power, telecommunications, and machinery. This equipment not only enhances production efficiency but also reduces labor costs, ensuring product consistency and high quality.

Contact Us

Product description

This model features the following characteristics:

  • High-Efficiency Production:​ Fully automated operation reduces manual intervention, significantly boosting production efficiency.
  • Precise Forming:​ Employs a precise roll-forming process to guarantee dimensional accuracy for every tray.
  • Versatility:​ Supports the production of various cable trays, including ladder-type, trough-type, and channel-type.
  • Energy Saving & Eco-Friendly:​ Low energy consumption design reduces energy usage during production.
  • Robust & Durable:​ High-quality materials and craftsmanship ensure longer equipment life and stable operation.

The design of the Cable Tray Roll Forming Machine fully considers modern production needs, making it suitable for high-volume, high-precision production tasks. Whether for small-scale or large-scale production, this equipment can meet the requirements of different users.

Technical Parameters Table:

Parameter Value
Maximum Forming Width 600mm
Forming Speed 12-20 m/min
Machine Power 7.5kW
Power Supply Requirement 380V, 50Hz
Equipment Weight 6000kg
Overall Dimensions (L x W x H) 8000mm x 1800mm x 1500mm
Applicable Material Thickness 1.0-3.0mm
Main Motor Power 15kW




Frequently Asked Questions

Q1: What is the primary application of the Cable Tray Roll Forming Machine?

A1:​ This equipment is primarily used for producing cable trays, including ladder-type, trough-type, and channel-type trays. It is widely applied in power, telecommunications, industrial, and other fields.

Q2: What specifications of cable trays is this machine suitable for producing?

A2:​ Our Cable Tray Roll Forming Machine supports the production of trays in various specifications, including ladder-type, trough-type, and channel-type, and can be customized according to requirements.

Q3: What is the production speed of the equipment?

A3:​ The production speed of the Cable Tray Roll Forming Machine can reach 12-20 meters per minute. The specific speed can be adjusted based on product specifications and requirements.

Q4: What is the power consumption and energy efficiency of the equipment?

A4:​ The machine power is 7.5kW. It incorporates an energy-saving design to reduce energy consumption during production, ensuring a more environmentally friendly process.

Q5: Is the equipment suitable for large-scale production?

A5:​ Yes, the Cable Tray Roll Forming Machine is designed for large-scale production tasks, featuring high efficiency and stable performance.
