This machine is suitable for 1.5-3.0mm galvanized steel strips and can be widely used in industrial plants, warehouse construction, photovoltaic support systems, prefabricated buildings, and other fields. The entire production line can be customized according to client requirements for section steel dimensions, hole patterns, thickness, forming speed, etc., flexibly adapting to different standards in the global market.
I. C-Section Steel Roll Forming Machine | High-Speed, High-Precision C-Section Steel Purlin Production Equipment | Factory Direct Sales, Customizable

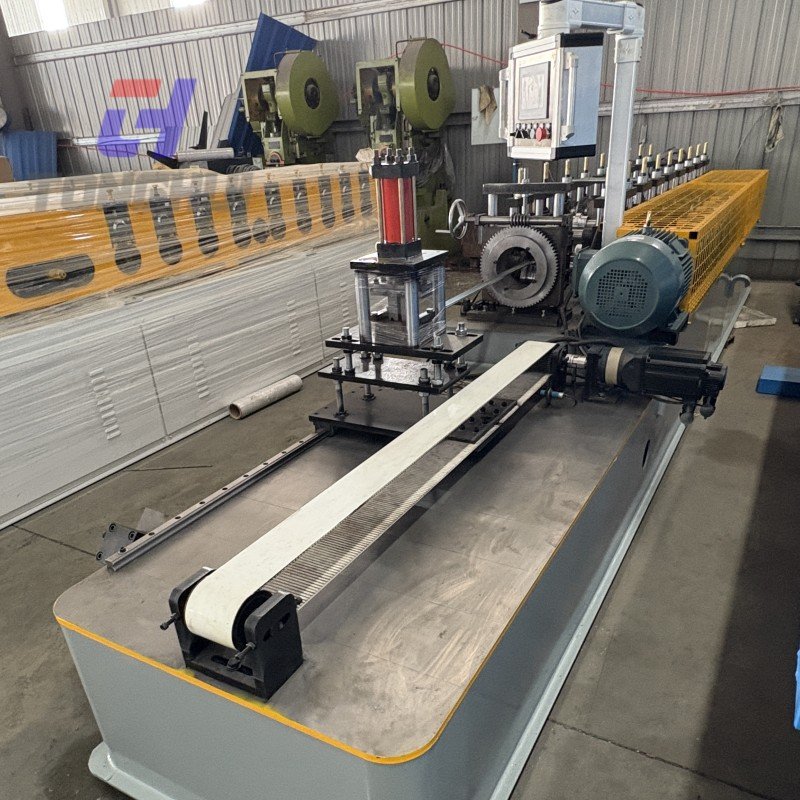

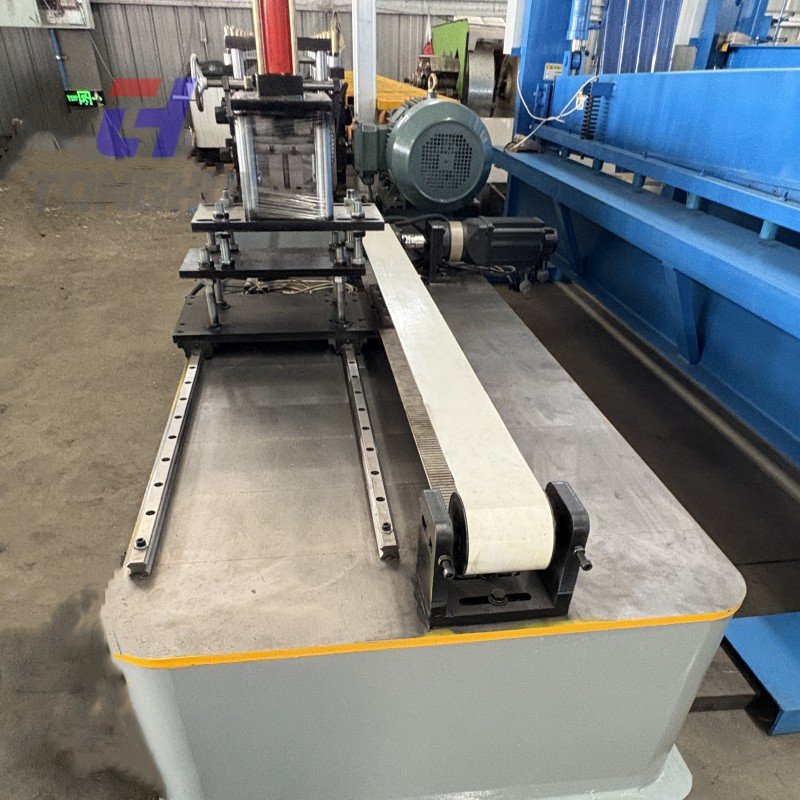

The C-Section Steel Roll Forming Machine is a fully automatic cold roll forming equipment specifically designed for producing C-section steel purlins, light steel structure components, photovoltaic support edge beams, and other similar elements. The machine utilizes multi-pass roll forming technology, an industrial-grade PLC control system, a high-strength welded frame, and a hydraulic punching and automatic cutting system to ensure good straightness, angular accuracy, and cross-sectional dimensional stability even during high-speed production.
II. Technical Parameters – C-Section Steel Roll Forming Machine
| Item | Parameter |
|---|---|
| Forming Material | Galvanized Steel Strip / Black Iron Steel (235-550 MPa) |
| Material Thickness | 1.5-3.0 mm (Optional: 1.2-4.0 mm) |
| Forming Width | Customized per drawing (Conventional: 80-300 mm) |
| Forming Height | 40-100 mm (Customizable) |
| Production Speed | 10-20 m/min |
| Roller Material | GCr15 / 42CrMo, CNC precision machining, chrome plated |
| Transmission Method | Reducer / Chain drive |

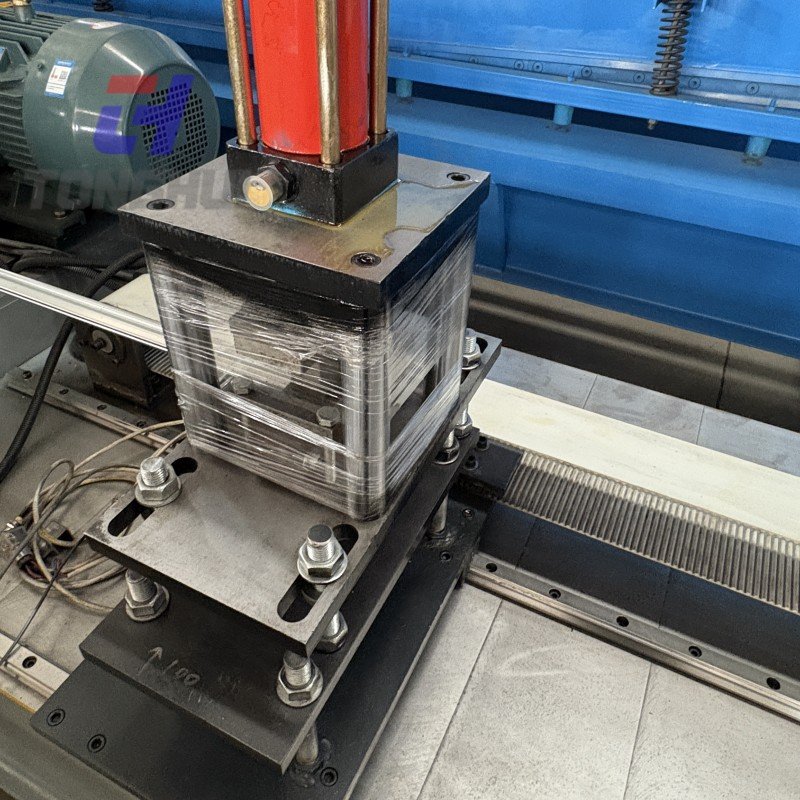

| Punching Method | Hydraulic punching, multi-hole position molds customizable |
| Cutting Method | Hydraulic die cutting / Flying saw cutting (Optional) |
| Control System | PLC + Touchscreen control (Siemens/Mitsubishi optional) |
| Main Motor Power | 11-22 kW |
| Hydraulic Station Power | 4-7.5 kW |
| Power Requirements | 380V / 50Hz / 3-phase (Customizable) |
| Complete Line Configuration | Uncoiling → Leveling → Punching → Forming → Cutting → Discharge Rack |
FAQ
Q1: What sizes can your C-Section Steel Machine produce?
A1: We can fully customize according to your drawings. The conventional range is C80-C300, and special heights and hole patterns are also available.
Q2: Can punching be added?
A2: Yes. Our hydraulic punching molds can be customized for multiple hole positions and shapes (round holes/oval holes/oblong holes).
Q3: What cutting methods are available?
A3: Standard configuration is hydraulic die cutting. If higher speed is needed, it can be upgraded to flying saw tracking cut.
Q4: What is the production speed?
A4: Standard speed is 10-20 m/min. The actual speed depends on the material thickness and hole pattern.
Q5: Do you provide on-site installation?
A5: We provide global installation and debugging / online guidance / video training.
Q6: What is the delivery time?
A6: Standard delivery time is 30-45 days. Custom projects are adjusted based on requirements.
Q7: Which countries do you export to?
A7: We export to 40+ countries including the United States, Mexico, India, Russia, Saudi Arabia, UAE, Australia, Peru, etc.
